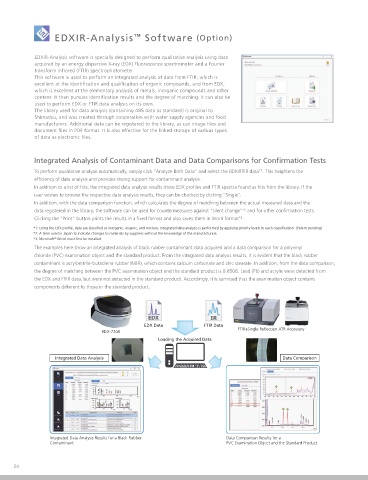

                   EDXIR-Analysis  Software (Option)

            EDXIR-Analysis software is specially designed to perform qualitative analysis using data
            acquired by an energy dispersive X-ray (EDX) fluorescence spectrometer and a Fourier
            transform infrared (FTIR) spectrophotometer.
            This software is used to perform an integrated analysis of data from FTIR, which is
            excellent at the identification and qualification of organic compounds, and from EDX,
            which is excellent at the elementary analysis of metals, inorganic compounds and other
            content. It then pursues identification results and the degree of matching. It can also be
            used to perform EDX or FTIR data analysis on its own.
            The library used for data analysis (containing 485 data as standard) is original to
            Shimadzu, and was created through cooperation with water supply agencies and food
            manufacturers. Additional data can be registered to the library, as can image files and
            document files in PDF format. It is also effective for the linked storage of various types
            of data as electronic files.


            Integrated Analysis of Contaminant Data and Data Comparisons for Con rmation Tests

            To perform qualitative analysis automatically, simply click “Analyze Both Data” and select the EDX/FTIR data . This heightens the
                                                                                       *1
            efficiency of data analysis and provides strong support for contaminant analysis.
            In addition to a list of hits, the integrated data analysis results show EDX profiles and FTIR spectra found as hits from the library. If the
            user wishes to browse the respective data analysis results, they can be checked by clicking “Single”.
            In addition, with the data comparison function, which calculates the degree of matching between the actual measured data and the
            data registered in the library, the software can be used for countermeasures against "silent change"  and for other confirmation tests.
                                                                                 *2
                                                                                *3
            Clicking the “Print” button prints the results in a fixed format and also saves them in Word format .
            *1: Using the EDX profile, data are classified as inorganic, organic, and mixture. Integrated data analysis is performed by applying priority levels to each classification. (Patent pending)
            *2: A term used in Japan to indicate changes to materials by suppliers without the knowledge of the manufacturers.
            *3: Microsoft ®  Word must first be installed.
            The examples here show an integrated analysis of black rubber contaminant data acquired and a data comparison for a polyvinyl
            chloride (PVC) examination object and the standard product. From the integrated data analysis results, it is evident that the black rubber
            contaminant is acrylonitrile-butadiene rubber (NBR), which contains calcium carbonate and zinc stearate. In addition, from the data comparison,
            the degree of matching between the PVC examination object and the standard product is 0.8506. Lead (Pb) and acrylic were detected from
            the EDX and FTIR data, but were not detected in the standard product. Accordingly, it is surmised that the examination object contains
            components different to those in the standard product.






                                                 EDX Data            FTIR Data
                                   EDX-7200                                     FTIR+Single Re ection ATR Accessory
                                                     Loading the Acquired Data


                   Integrated Data Analysis                                                    Data Comparison














                  Integrated Data Analysis Results for a Black Rubber       Data Comparison Results for a
                  Contaminant                                               PVC Examination Object and the Standard Product

                                                                                                                                                                                                                             EDX-7200
