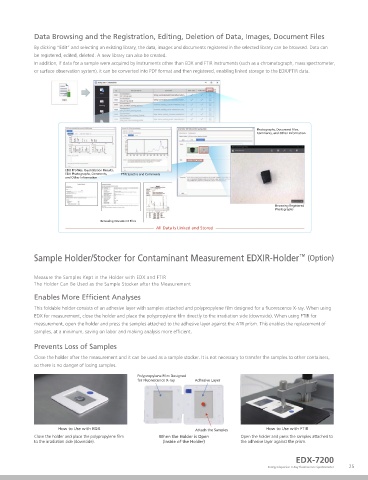

Data Browsing and the Registration, Editing, Deletion of Data, Images, Document Files
By clicking “Edit” and selecting an existing library, the data, images and documents registered in the selected library can be browsed. Data can
be registered, edited, deleted. A new library can also be created.
In addition, if data for a sample were acquired by instruments other than EDX and FTIR instruments (such as a chromatograph, mass spectrometer,
or surface observation system), it can be converted into PDF format and then registered, enabling linked storage to the EDX/FTIR data.

Photographs, Document Files,
Comments, and Other Information

EDX Pro les, Quantitation Results,
EDX Photographs, Comments, FTIR Spectra and Comments
and Other Information

Browsing Registered
Photographs
Browsing Document Files
All Data Is Linked and Stored

™
Sample Holder/Stocker for Contaminant Measurement EDXIR-Holder (Option)

Measure the Samples Kept in the Holder with EDX and FTIR
The Holder Can Be Used as the Sample Stocker after the Measurement
Enables More Ef cient Analyses

This foldable holder consists of an adhesive layer with samples attached and polypropylene film designed for a fluorescence X-ray. When using
EDX for measurement, close the holder and place the polypropylene film directly to the irradiation side (downside). When using FTIR for
measurement, open the holder and press the samples attached to the adhesive layer against the ATR prism. This enables the replacement of
samples, at a minimum, saving on labor and making analysis more efficient.

Prevents Loss of Samples
Close the holder after the measurement and it can be used as a sample stocker. It is not necessary to transfer the samples to other containers,
so there is no danger of losing samples.
Polypropylene Film Designed
for Fluorescence X-ray Adhesive Layer

How to Use with EDX Attach the Samples How to Use with FTIR
Close the holder and place the polypropylene lm When the Holder is Open Open the holder and press the samples attached to
to the irradiation side (downside). (Inside of the Holder) the adhesive layer against the prism.
