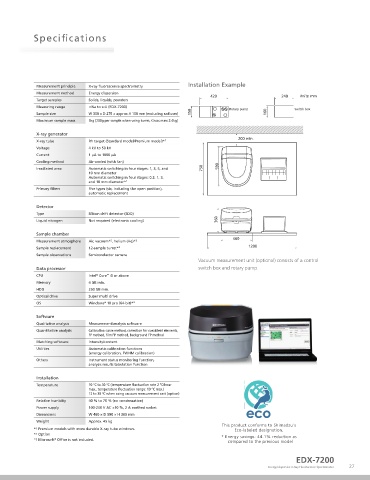

Page 27 - EDX-7200

Speci cations

Measurement principle X-ray uorescence spectrometry Installation Example
Measurement method Energy dispersion
429 249 Units: mm
Target samples Solids, liquids, powders
Measuring range 11Na to 92U (EDX-7200) Rotary pump Switch box
Sample size W 300 × D 275 × approx.H 100 mm (excluding radiuses) 158 160
Maximum sample mass 5kg (200g per sample when using turret, Gross mass 2.4kg)

X-ray generator
200 min.
X-ray tube Rh target (Standard model/Premium model)* 1
Voltage 4 kV to 50 kV
Current 1 A to 1000 A
Cooling method Air-cooled (with fan)
Irradiated area Automatic switching in four stages: 1, 3, 5, and 750 590
10 mm diameter
Automatic switching in four stages: 0.3, 1, 3,
and 10 mm diameter* 1
Primary lters Five types (six, including the open position),
automatic replacement
Detector
Type Silicon drift detector (SDD)
Liquid nitrogen Not required (electronic cooling) 360

Sample chamber
460
Measurement atmosphere Air, vacuum* 2 , helium (He)* 2
Sample replacement 12-sample turret* 2 1200
Sample observations Semiconductor camera
Vacuum measurement unit (optional) consists of a control
Data processor switch box and rotary pump.
CPU Intel ® Core i5 or above
™
Memory 4 GB min.
HDD 250 GB min.
Optical drive Super multi drive
®
OS Windows 10 pro (64-bit)* 3
Software
Qualitative analysis Measurement/analysis software
Quantitative analysis Calibration curve method, correction for coexistent elements,
FP method, lm FP method, background FP method
Matching software Intensity/content
Utilities Automatic calibration functions
(energy calibration, FWHM calibration)
Others Instrument status monitoring function,
analysis results tabulation function

Installation
Temperature 10 °C to 30 °C (temperature uctuation rate 2 °C/hour
max., temperature uctuation range: 10 °C max.)
12 to 30 °C when using vacuum measurement unit (option)
Relative humidity 40 % to 70 % (no condensation)
Power supply 100-240 V AC ±10 %, 2 A earthed socket
Dimensions W 460 × D 590 × H 360 mm
Weight Approx. 45 kg
This product conforms to Shimadzu's
* 1 Premium models with more durable X-ray tube windows. Eco-labeled designation.
* 2 Option * Energy savings: 44.1% reduction as
* 3 Microsoft ® Of ce is not included. compared to the previous model

EDX-7200
Energy Dispersive X-Ray Fluorescence Spectrometer 27
