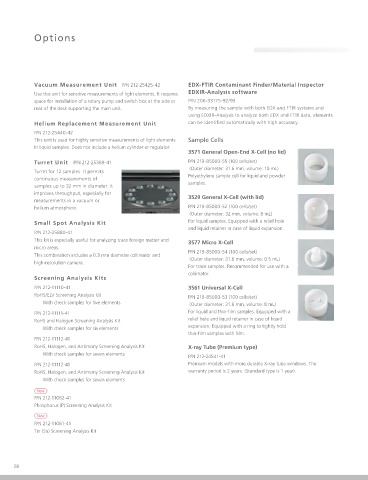

Options

Vacuum Measurement UnitɹP/N 212-25425-42 EDX-FTIR Contaminant Finder/Material Inspector
Use this unit for sensitive measurements of light elements. It requires EDXIR-Analysis software
space for installation of a rotary pump and switch box at the side or P/N 206-33175-92/93
rear of the desk supporting the main unit. By measuring the sample with both EDX and FTIR systems and
using EDXIR-Analysis to analyze both EDX and FTIR data, elements
Helium Replacement Measurement Unit can be identified automatically with high accuracy.
P/N 212-25440-42
This unit is used for highly sensitive measurements of light elements Sample Cells
in liquid samples. Does not include a helium cylinder or regulator.
3571 General Open-End X-Cell (no lid)
Turret Unit P/N 212-25389-41 P/N 219-85000-55 (100 cells/set)
(Outer diameter: 31.6 mm, volume: 10 mL)
Turret for 12 samples. It permits
Polyethylene sample cell for liquid and powder
continuous measurements of
samples.
samples up to 32 mm in diameter. It
improves throughput, especially for 3529 General X-Cell (with lid)
measurements in a vacuum or
helium atmosphere. P/N 219-85000-52 (100 cells/set)
(Outer diameter: 32 mm, volume: 8 mL)
Small Spot Analysis Kit For liquid samples. Equipped with a relief hole
and liquid retainer in case of liquid expansion.
P/N 212-25880-41
This kit is especially useful for analyzing trace foreign matter and 3577 Micro X-Cell
micro areas.
P/N 219-85000-54 (100 cells/set)
This combination includes a 0.3 mm diameter collimator and
(Outer diameter: 31.6 mm, volume: 0.5 mL)
high-resolution camera.
For trace samples. Recommended for use with a
collimator.
Screening Analysis Kits
P/N 212-11110-41 3561 Universal X-Cell
RoHS/ELV Screening Analysis Kit
P/N 219-85000-53 (100 cells/set)
With check samples for five elements (Outer diameter: 31.6 mm, volume: 8 mL)
P/N 212-11111-41 For liquid and thin-film samples. Equipped with a
RoHS and Halogen Screening Analysis Kit relief hole and liquid retainer in case of liquid
With check samples for six elements expansion. Equipped with a ring to tightly hold
thin-film samples with film.
P/N 212-11112-41
RoHS, Halogen, and Antimony Screening Analysis Kit X-ray Tube (Premium type)
With check samples for seven elements
P/N 212-24541-41
P/N 212-11112-41 Premium models with more durable X-ray tube windows. The
RoHS, Halogen, and Antimony Screening Analysis Kit warranty period is 2 years. (Standard type is 1 year).
With check samples for seven elements
New
P/N 212-11062-41
Phosphorus (P) Screening Analysis Kit

New
P/N 212-11061-41
Tin (Sn) Screening Analysis Kit

EDX-7200
28 Energy Dispersive X-Ray Fluorescence Spectrometer
