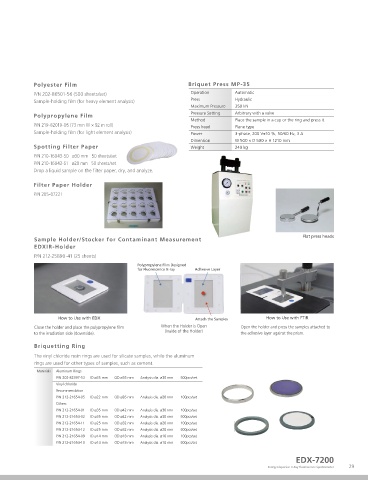

P. 29
Polyester Filmɹ Briquet Press MP-35
P/N 202-86501-56 (500 sheets/set) Operation Automatic
Sample-holding film (for heavy element analysis) Press Hydraulic
Maximum Pressure 350 kN
Polypropylene Film Pressure Setting Arbitrary with a valve
Method Place the sample in a cup or the ring and press it.
P/N 219-82019-05 (73 mm W × 92 m roll) Press head Plane type
Sample-holding film (for light element analysis) Power 3-phase, 200 V±10 %, 50/60 Hz, 3 A
Dimension W 500 × D 500 × H 1210 mm
Spotting Filter Paper Weight 240 kg
P/N 210-16043-50 ø30 mm 50 sheets/set
P/N 210-16043-51 ø20 mm 50 sheets/set
Drop a liquid sample on the filter paper, dry, and analyze.
Filter Paper Holder
P/N 205-07221
Flat press heads
Sample Holder/Stocker for Contaminant Measurement
EDXIR-Holder
P/N 212-25890-41 (25 sheets)
Polypropylene Film Designed
for Fluorescence X-ray Adhesive Layer
How to Use with EDX Attach the Samples How to Use with FTIR
Close the holder and place the polypropylene lm When the Holder is Open Open the holder and press the samples attached to
to the irradiation side (downside). (Inside of the Holder) the adhesive layer against the prism.
Briquetting Ring
The vinyl chloride resin rings are used for silicate samples, while the aluminum
rings are used for other types of samples, such as cement.
Materials Aluminum Rings
P/N 202-82397-53 ID ø35 mm OD ø35 mm Analysis dia. ø30 mm 500pcs/set
Vinyl chloride
Recommendation
P/N 212-21654-05 ID ø22 mm OD ø26 mm Analysis dia. ø20 mm 100pcs/set
Others
P/N 212-21654-01 ID ø35 mm OD ø42 mm Analysis dia. ø30 mm 100pcs/set
P/N 212-21654-02 ID ø35 mm OD ø42 mm Analysis dia. ø30 mm 500pcs/set
P/N 212-21654-11 ID ø25 mm OD ø32 mm Analysis dia. ø20 mm 100pcs/set
P/N 212-21654-12 ID ø25 mm OD ø32 mm Analysis dia. ø20 mm 500pcs/set
P/N 212-21654-09 ID ø14 mm OD ø18 mm Analysis dia. ø10 mm 100pcs/set
P/N 212-21654-10 ID ø14 mm OD ø18 mm Analysis dia. ø10 mm 500pcs/set
EDX-7200
Energy Dispersive X-Ray Fluorescence Spectrometer 29
