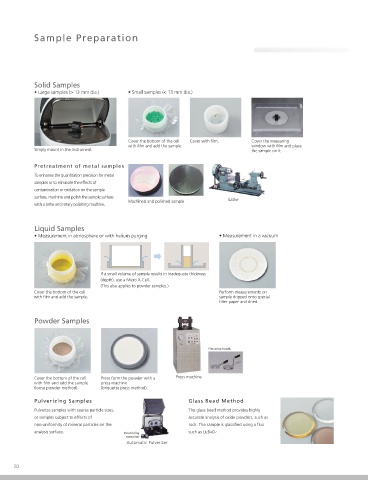

Sample Preparation








            Solid Samples
            • Large samples (> 13 mm dia.)  • Small samples (< 13 mm dia.)









                                           Cover the bottom of the cell  Cover with  lm.   Cover the measuring
                                           with  lm and add the sample.             window with  lm and place
            Simply mount in the instrument.                                         the sample on it.

            Pretreatment of metal samples
            To enhance the quantitation precision for metal
            samples or to eliminate the effects of
            contamination or oxidation on the sample
            surface, machine and polish the sample surface
                                           Machined and polished sample      Lathe
            with a lathe and rotary polishing machine.


            Liquid Samples
            • Measurement in atmosphere or with helium purging            • Measurement in a vacuum






                                  If a small volume of sample results in inadequate thickness
                                  (depth), use a Micro X-Cell.
                                  (This also applies to powder samples.)
            Cover the bottom of the cell                                  Perform measurements on
            with  lm and add the sample.                                  sample dripped onto special
                                                                           lter paper and dried.

            Powder Samples





                                                                      Flat press heads




            Cover the bottom of the cell  Press form the powder with a  Press machine
            with film and add the sample  press machine
            (loose powder method).   (briquette press method).
            Pulverizing Samples                                Glass Bead Method
            Pulverize samples with coarse particle sizes,      The glass bead method provides highly
            or samples subject to effects of                   accurate analysis of oxide powders, such as
            non-uniformity of mineral particles on the         rock. The sample is glassified using a flux
            analysis surface.             Pulverizing          such as Li2B4O7.
                                           container
                                           Automatic Pulverizer

                                                                                                                                                                                                                             EDX-7200
