P. 47

No. SSI-LCMS-121

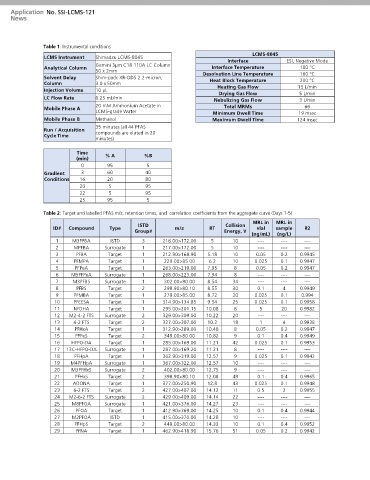

               Table 1: Instrumental conditions

                                                                                     LCMS-8045
                LCMS Instrument   Shimadzu LCMS-8045
                                                                            Interface           ESI, Negative Mode
                                 Gemini 3µm C18 110A LC Column
                Analytical Column                                      Interface Temperature        100 °C
                                 50 x 2mm                           Desolvation Line Temperature    160 °C
                Solvent Delay    Shim-pack XR-ODS 2.2-micron,         Heat Block Temperature        200 °C
                Column           3.0 x 50mm
                Injection Volume   10 µL                                 Heating Gas Flow           15 L/min
                                                                         Drying Gas Flow            5 L/min
                LC Flow Rate     0.25 mL/min                            Nebulizing Gas Flow         3 L/min
                                 20 mM Ammonium Acetate in                 Total MRMs                 66
                Mobile Phase A
                                 LCMS-grade Water                      Minimum Dwell Time           19 msec
                Mobile Phase B   Methanol                              Maximum Dwell Time          124 msec
                                 35 minutes (all 44 PFAS
                Run / Acquisition   compounds are eluted in 20
                Cycle Time
                                 minutes)

                          Time
                          (min)     % A          %B
                            0        95           5
                Gradient    3        60          40
                Conditions   16      20          80
                           20        5           95
                           22        5           95
                           25        95           5
               Table 2: Target and labelled PFAS m/z, retention times, and  correlation coefficients from the aggregate curve (Days 1-5)

                                                                                     MRL in   MRL in
                                               ISTD                         Collision
                   ID#   Compound    Type                  m/z        RT              vial    sample   R2
                                              Group#                       Energy, V
                                                                                    (ng/mL)   (ng/L)
                   1     M3PFBA       ISTD      3      216.00>172.00   5      10      ----    ----    ----
                   2     MPFBA      Surrogate   1      217.00>172.00   5      10      ----    ----    ----
                   3      PFBA       Target     1      212.90>168.90   5.18   10      0.05    0.2   0.9945
                   4     PFMPA       Target     1      229.00>85.00   6.2     10     0.025    0.1   0.9947
                   5      PFPeA      Target     1      263.00>219.00   7.95   8       0.05    0.2   0.9947
                   6     M5PFPeA    Surrogate   1      268.00>223.00   7.94   8       ----    ----    ----
                   7     M3PFBS     Surrogate   1      302.00>80.00   8.54    34      ----    ----    ----
                   8      PFBS       Target     2      298.90>80.10   8.55    30      0.1      4    0.9949
                   9     PFMBA       Target     1      279.00>85.00   8.72    20     0.025    0.1    0.994
                   10    PFEESA      Target     1      314.90>134.85   9.54   25     0.025    0.1   0.9958
                   11    NFDHA       Target     1      295.00>201.15   10.08   8       5      20    0.9982
                   12   M2-4-2 FTS   Surrogate   2     329.00>309.00   10.22   20     ----    ----    ----
                   13    4-2 FTS     Target     2      327.00>307.00   10.2   18       1       4    0.9938
                   14     PFHxA      Target     1      312.90>269.00   10.48   8      0.05    0.2   0.9947
                   15     PFPeS      Target     2      349.00>80.00   10.82   9       0.1     0.4   0.9949
                   16    HFPO-DA     Target     1      285.00>169.00   11.21   42    0.025    0.1   0.9953
                   17   13C-HFPO-DA   Surrogate   1    287.00>169.20   11.21   8      ----    ----    ----
                   18     PFHpA      Target     1      362.90>319.00   12.57   9     0.025    0.1   0.9942
                   19   M4PFHpA     Surrogate   1      367.00>322.00   12.57   10     ----    ----    ----
                   20    M3PFHxS    Surrogate   2      402.00>80.00   12.75   9       ----    ----    ----
                   21     PFHxS      Target     2      398.90>80.10   12.08   49      0.1     0.4   0.9965
                   22    ADONA       Target     1      377.00>250.90   12.8   43     0.025    0.1   0.9948
                   23    6-2 FTS     Target     2      427.00>407.00   14.12   11     0.5      2    0.9955
                   24   M2-6-2 FTS   Surrogate   2     429.00>409.00   14.14   22     ----    ----    ----
                   25    M8PFOA     Surrogate   1      421.00>376.00   14.27   23     ----    ----    ----
                   26     PFOA       Target     1      412.90>369.00   14.25   10     0.1     0.4   0.9944
                   27    M2PFOA       ISTD      1      415.00>370.00   14.28   10     ----    ----    ----
                   28     PFHpS      Target     2      449.00>80.00   14.33   10      0.1     0.4   0.9952
                   29     PFNA       Target     1      462.90>418.90   15.76   51     0.05    0.2   0.9942
