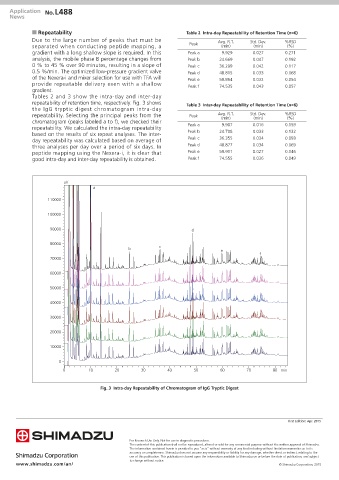

Page 25 - Application Handbook - Liquid Chromatography

Application No.L488
News

n Repeatability Table 2 Intra-day Repeatability of Retention Time (n=6)
Due to the large number of peaks that must be Avg. R.T. Std. Dev. %RSD
separated when conducting peptide mapping, a Peak (min) (min) (%)
gradient with a long shallow slope is required. In this Peak a 9.929 0.027 0.271
analysis, the mobile phase B percentage changes from Peak b 24.669 0.047 0.192
0 % to 45 % over 90 minutes, resulting in a slope of Peak c 36.299 0.042 0.117
0.5 %/min. The optimized low-pressure gradient valve Peak d 48.815 0.033 0.068
of the Nexera-i and mixer selection for use with TFA will Peak e 59.864 0.032 0.054
provide repeatable delivery even with a shallow Peak f 74.535 0.043 0.057
gradient.
Tables 2 and 3 show the intra-day and inter-day
repeatability of retention time, respectively. Fig. 3 shows Table 3 Inter-day Repeatability of Retention Time (n=6)
the IgG tryptic digest chromatogram intra-day
repeatability. Selecting the principal peaks from the Peak Avg. R.T. Std. Dev. %RSD
(min)
(min)
(%)
chromatogram (peaks labeled a to f), we checked their
repeatability. We calculated the intra-day repeatability Peak a 9.907 0.016 0.159
based on the results of six repeat analyses. The inter- Peak b 24.708 0.033 0.132
day repeatability was calculated based on average of Peak c 36.355 0.034 0.093
three analyses per day over a period of six days. In Peak d 48.877 0.034 0.069
peptide mapping using the Nexera-i, it is clear that Peak e 59.901 0.027 0.046
good intra-day and inter-day repeatability is obtained. Peak f 74.555 0.036 0.049

uV
a
110000

100000

90000 d

80000
b c
e
f
70000
60000

50000

40000

30000

20000

10000

0
0 10 20 30 40 50 60 70 80 min

Fig. 3 Intra-day Repeatability of Chromatogram of IgG Tryptic Digest

First Edition: Apr. 2015

For Research Use Only. Not for use in diagnostic procedures.
