Page 23 - Application Handbook - Liquid Chromatography

Application No.L462
News

n Comprehensive Separation of Glycerophospholipids The GPLs mixture was comprised of 500 ppb each of
Comprehensive Separation of GPLs in ESI-positive MRM Phosphatidylglycerol (PG), Phosphatidylethanolamine
mode are shown in Fig. 2. (PE), Phosphatidylinositol (PI), Phosphatidylserine (PS)
and Phosphatidylcholine (PC). The 2D plot of ESI-
positive MRM shows the separation of PG, PE, PI, PS
and PC. The repeatability (n=5) of retention times and
blob areas, which correspond to peak areas in ordinary
quantitation and linearity for 50-5000 µg/L of each 3
PC compounds are is shown in Table 2.
Necessary information for compound-identification is
shown in Fig. 2.

(min.)
0.981
PE group
2D 18:0p-18:1 PC
0.785
18:0-18:1 PC

0.589
16:0-16:0 PC
PI group
PS group
0.392
PC group
0.196
PG group
1D
100
100 13.998 27.997 41.995 55.994 69.992 (min.)

Area
750000000.0

500000000.0

250000000.0

0.0
0 500 1,000 1,500 2,000 2,500 3,000 3,500 4,000 4,500 5,000
Conc. (µg/L)

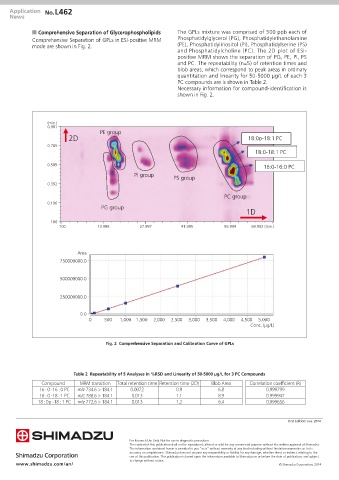

Fig. 2 Comprehensive Separation and Calibration Curve of GPLs

Table 2 Repeatability of 5 Analyses in %RSD and Linearity of 50-5000 μg/L for 3 PC Compounds
Compound MRM transition Total retention time Retention time (2D) Blob Area Correlation coefficient (R)
16 : 0 -16 : 0 PC m/z 734.6 > 184.1 0.0072 0.9 6.8 0.999799
18 : 0 -18 : 1 PC m/z 788.6 > 184.1 0.013 1.1 8.9 0.999947
18 : 0p -18 : 1 PC m/z 772.6 > 184.1 0.013 1.2 6.4 0.999656
