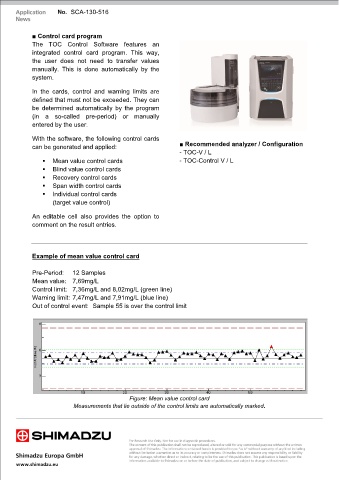

Page 31 - 5_TOC in daily practice

SCA-130-516

■ Control card program
The TOC Control Software features an
integrated control card program. This way,
the user does not need to transfer values
manually. This is done automatically by the
system.

In the cards, control and warning limits are
defined that must not be exceeded. They can
be determined automatically by the program
(in a so-called pre-period) or manually
entered by the user.

With the software, the following control cards
can be generated and applied: ■ Recommended analyzer / Configuration
- TOC-V / L
 Mean value control cards - TOC-Control V / L
 Blind value control cards
 Recovery control cards
 Span width control cards
 Individual control cards
(target value control)
An editable cell also provides the option to
comment on the result entries.

Example of mean value control card

Pre-Period: 12 Samples
Mean value: 7,69mg/L
Control limit: 7,36mg/L and 8,02mg/L (green line)
Warning limit: 7,47mg/L and 7,91mg/L (blue line)
Out of control event: Sample 55 is over the control limit

Figure: Mean value control card
Measurements that lie outside of the control limits are automatically marked.
