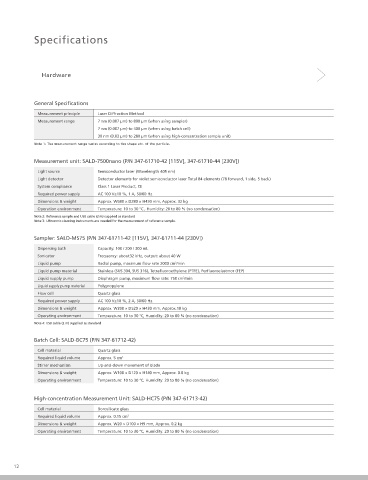

Specifications

Hardware Software

General Specifications WingSALD II
Measurement principle Laser Diffraction Method Measurement and Data Display Functions
Measurement range 7 nm (0.007 µm) to 800 µm (when using sampler) Measurement of Particle Size Distribution Allows measurements using measurement assistant unction (interactive process based on SOP) and manual mode
7 nm (0.007 µm) to 400 µm (when using batch cell) Automatic Calculation of Refractive Index Automatic calculation by Light Intensity Distribution Reproduction (LDR) method based on specified substance name or range
30 nm (0.03 µm) to 280 µm (when using high-concentration sample unit) Real-time Display Particle size distribution / Light intensity distribution simultaneous display
Note 1: The measurement range varies according to the shape etc. of the particle. Recalculation of Particle Size Distribution Max. 200 data batch calculation or individual data calculation
Display of Particle Size distribution Data Max. 200 data overlay graph or individual data graph
Measurement unit: SALD-7500nano (P/N 347-61710-42 [115V], 347-61710-44 [230V]) Display of Light Intensity Distribution Max. 200 data overlay graph or individual data graph
Diagnostics/Adjustments Self-diagnostic functions, Cell check functions
Light source Semiconductor laser (Wavelength 405 nm) Statistical Data Processing Max. 200 data (Max. 200 data overlay graph)
Light detector Detector elements for violet semiconductor laser Total 84 elements (78 forward, 1 side, 5 back) Time Series Analysis Max. 200 data
System compliance Class 1 Laser Product, CE
3-Dimensional Graph Max. 200 data
Required power supply AC 100 V±10 %, 1 A, 50/60 Hz Data Transfer via Clipboard Image Output, Text Output
Dimensions & weight Approx. W680 × D280 × H430 mm, Approx. 32 kg
Data Sorting Sort by file name, sample ID, sample number, or refractive index.
Operation environment Temperature: 10 to 30 °C , Humidity: 20 to 80 % (no condensation) Output Conditions
Note 2: Reference sample and USB cable (2 m) supplied as standard Particle Size Distribution (µm) Number of Divisions Fixed 101 / 51 divisions / Optional (can be set by user) 51 divisions
Note 3: Ultrasonic cleaning instruments are needed for the measurement of reference sample.
Particle Mass Distribution (%) Number of Divisions Fixed 51 divisions, Optional (can be set by user) 51 divisions
Dimension of Particle Amount Count, length, area or volume
Sampler: SALD-MS75 (P/N 347-61711-42 [115V], 347-61711-44 [230V]) Expression of Cumulative Distribution Undersize, oversize
Dispersing bath Capacity: 100 / 200 / 300 mL Expression of Data Frequency q, q / ∆×, q / ∆log×
Sonicator Frequency: about32 kHz, output: about 40 W Smoothing Level 10 Level
Liquid pump Radial pump, maximum flow rate 2000 cm /min Distribution Function Fitting Rosin-Rammler distribution, logarithmic Gaussian distribution
3
Liquid pump material Stainless (SUS 304, SUS 316), Tetrafluoroethylene (PTFE), Perfluoroelastmor (FEP) Data Shifting ±10 levels
Liquid supply pump Diaphragm pump, maximum flow rate: 750 cm /min Report Functions Batch output possible by selecting single data (template 6), overlay data (template 5), statistical data, time-series data, or 3D data
3
Liquid supply pump material Polypropylene Data Analysis
Flow cell Quartz glass Scattering Angle Evaluation Max. 200 data overlay graph or individual data graph
Required power supply AC 100 V±10 %, 2 A, 50/60 Hz Data Conversion Function Emulation of particle distribution data by other instruments or measuring principles
Dimensions & weight Approx. W390 × D520 × H430 mm, Approx.18 kg Mixing Simulation Function Max. 6 points
Operating environment Temperature: 10 to 30 °C, Humidity: 20 to 80 % (no condensation) Data Connection Function 2 data connections
Note 4: USB cable (2 m) supplied as standard Continuous Measurements Function Measurement interval: １ second min., Save up to 200 data points
Note 5: The Light Intensity Distribution Reproduction (LDR) method calculates the refractive index from the conformity between the measured light intensity distribution pattern and the light intensity distribution data
reproduced (calculated) from the particle size distribution data. LDR is a proprietary method developed by Shimadzu. Two papers have been published on this method. It is sometimes called the
Batch Cell: SALD-BC75 (P/N 347-61712-42) "Kinoshita Method" at academic conferences.
Cell material Quartz glass
Required liquid volume Approx. 5 cm 3 PC Requirements (reference)
Stirrer mechanism Up-and-down movement of blade The software is included standard on a CD-R with the SALD system (optical system). Install the software on a PC that meets the following specifications.
Dimensions & weight Approx. W100 × D120 × H140 mm, Approx. 0.8 kg OS Windows 7 (32 bit version)
Operating environment Temperature: 10 to 30 °C, Humidity: 20 to 80 % (no condensation)
CPU Pentium Dual-Core 2.5 GHz min
MEMORY 2 GB min
High-concentration Measurement Unit: SALD-HC75 (P/N 347-61713-42) HDD Min 1 GB of free space required
CD-ROM Drive Required software installation
Cell material Borosilicate glass
Serial Port USB×1 (required 2 USB ports for using sampler via PC)
Required liquid volume Approx. 0.15 cm 3
Display SXGA (1280×1024 pixel) min.
Dimensions & weight Approx. W20 × D100 × H9 mm, Approx. 0.2 kg
Printer Must be compatible with operating system
Operating environment Temperature: 10 to 30 °C, Humidity: 20 to 80 % (no condensation)

SALD-7500nano
12 Nano Particle Size Analyzer 13
