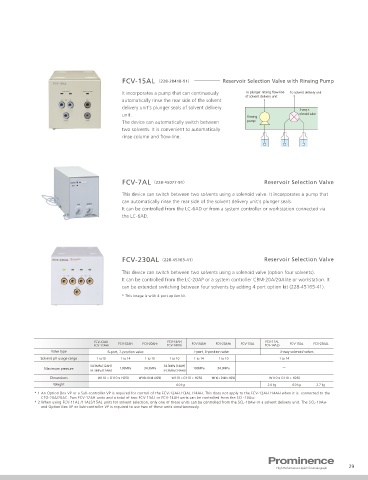

Page 29 - Shimadzu Prominence

FCV-15AL ʢ228-28418-91ʣ Reservoir Selection Valve with Rinsing Pump

It incorporates a pump that can continuously To plunger rinsing flow-line To solvent delivery unit
of solvent delivery unit
automatically rinse the rear side of the solvent
delivery unit’s plunger seals of solvent delivery 3-way s
unit. Rinsing olenoid valve
The device can automatically switch between pump
two solvents. It is convenient to automatically
rinse column and flow-line.

FCV-7AL ʢ228-45077-91ʣ Reservoir Selection Valve

This device can switch between two solvents using a solenoid valve. It incorporates a pump that
can automatically rinse the rear side of the solvent delivery unit's plunger seals.
It can be controlled from the LC-6AD or from a system controller or workstation connected via
the LC-6AD.

FCV-230AL ʢ228-45163-41ʣ Reservoir Selection Valve

This device can switch between two solvents using a solenoid valve (option four solvents).
It can be controlled from the LC-20AP or a system controller CBM-20A/20Alite or workstation. It
can be extended switching between four solvents by adding 4 port option kit (228-45165-41).
* This image is with 4 port option kit

FCV-12AH FCV-14AH FCV-11AL
FCV-12AHi FCV-32AH FCV-20AH2 FCV-14AHi FCV-34AH FCV-20AH6 FCV-13AL FCV-14ALS FCV-15AL FCV-230AL
Valve type 6-port, 2-position valve 7-port, 6-position valve 3-way solenoid valves
Solvent pH usage range 1 to10 1 to 14 1 to 10 1 to 10 1 to 14 1 to 10 1 to 14
34.3MPaʢ12AHʣ 34.3MPaʢ14AHʣ
Maximum pressure 130MPa 34.3MPa 100MPa 34.3MPa ʔ
ɹ 34.3MPaʢ12AHiʣ 34.3MPaʢ14AHiʣ
Dimensions W110 × D110 × H250 W110× D140 ×H250 W110 × D110 × H250 W110 × D140 × H250 W110 × D110 × H250
Weight 4.0 kg 2.0 kg 4.0 kg 2.7 kg
* 1 An Option Box VP or a Sub-controller VP is required for control of the FCV-12AH /13AL /14AH. This does not apply to the FCV-12AH /14AH when it is connected to the
CTO-20A/20AC. Two FCV-12AH units and a total of two FCV-13AL or FCV-14AH units can be controlled from the SCL-10AVP.
* 2 When using FCV-11AL /11ALS/15AL units for solvent selection, only one of these units can be controlled from the SCL-10AVP or a solvent delivery unit. The SCL-10AVP
and Option Box VP or Sub-controller VP is required to use two of these units simultaneously.
