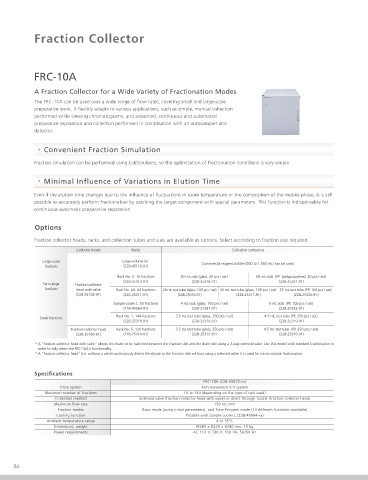

Fraction Collector

FRC-10A

A Fraction Collector for a Wide Variety of Fractionation Modes
The FRC-10A can be used over a wide range of flow rates, covering small and large-scale
preparative work. It flexibly adapts to various applications, such as simple, manual collection
performed while viewing chromatograms, and advanced, continuous and automated
preparative separation and collection performed in combination with an autosampler and
detector.

Convenient Fraction Simulation

Fraction simulation can be performed using LabSolutions, so the optimization of fractionation conditions is very simple.

Minimal Influence of Variations in Elution Time

Even if the elution time changes due to the influence of fluctuations in room temperature or the composition of the mobile phase, it is still
possible to accurately perform fractionation by catching the target component with special parameters. This function is indispensable for
continuous automatic preparative separation.

Options

Fraction collector heads, racks, and collection tubes and vials are available as options. Select according to fraction size required.
Collector heads Racks Collection containers

Large-scale Large-volume kit Commercial reagent bottles (500 to 1,000 mL) can be used.
fractions (228-45116-91)
Rack No. 3: 16 fractions 50 mL vials (glass, 20 pcs / set) 50 mL vials (PP (polypropylene), 20 pcs / set)
(228-25313-91) (228-25318-91) (228-25321-91)
Semi-large Fraction-collector
fractions head with valve Rack No. 2A: 64 fractions 20 mL test tube (glass, 100 pcs / set) 32 mL test tube (glass, 100 pcs / set) 25 mL test tube (PP, 100 pcs / set)
(228-24105-91) (228-25311-91) (228-25316-91) (228-25317-91) (228-25320-91)
Sample cooler L: 50 fractions 4 mL vials (glass, 100 pcs / set) 5 mL vials (PP, 100 pcs / set)
(228-45064-91) (228-21287-91) (228-25322-91)
Rack No. 1: 144 fractions 3.5 mL test tube (glass, 250 pcs / set) 4.5 mL test tube (PP, 250 pcs / set)
Small fractions
(228-25310-91) (228-25315-91) (228-25319-91)
Fraction-collector head Rack No. 5: 120 fractions 3.5 mL test tube (glass, 250 pcs / set) 4.5 mL test tube (PP, 250 pcs / set)
(228-25169-91) (228-25314-91) (228-25315-91) (228-25319-91)
* A "fraction-collector head with valve" allows the eluate to be switched between the fraction side and the drain side using a 3-way solenoid valve. Use this model with standard fractionation in
order to fully attain the FRC-10A's functionality.
* A "fraction-collector head" (i.e. without a valve) continuously directs the eluate to the fraction side without using a solenoid valve. It is used for micro-volume fractionation.

Specifications
FRC-10A (228-45070-xx)
Drive system Arm-movement X-Y system
Maximum number of fractions 16 to 144 (depending on the type of rack used)
Collection method Solenoid valve (fraction-collector head with valve) or direct through nozzle (fraction-collector head)
Maximum flow rate 150 mL/ min
Fraction modes Basic mode (using initial parameters), and Time-Program mode (14 different functions available)
Cooling function Possible with sample cooler L (228-45064-xx)
Ambient temperature range 4 to 35°C
Dimensions, weight W260 × D420 × H280 mm, 15 kg
Power requirements AC 110 V, 230 V, 100 VA, 50 /60 Hz
