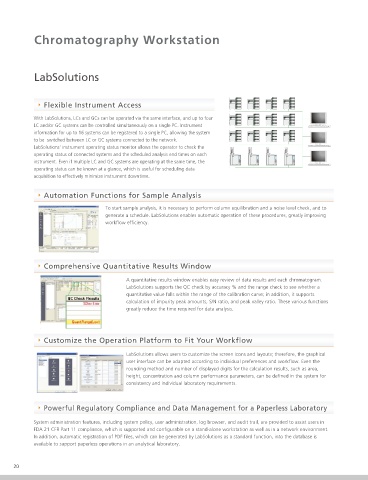

Page 20 - Shimadzu Prominence

Chromatography Workstation

LabSolutions

Flexible Instrument Access

With LabSolutions, LCs and GCs can be operated via the same interface, and up to four
LC and/or GC systems can be controlled simultaneously on a single PC. Instrument
information for up to 16 systems can be registered to a single PC, allowing the system
to be switched between LC or GC systems connected to the network.
LabSolutions' instrument operating status monitor allows the operator to check the
operating status of connected systems and the scheduled analysis end times on each
instrument. Even if multiple LC and GC systems are operating at the same time, the
operating status can be known at a glance, which is useful for scheduling data
acquisition to effectively minimize instrument downtime.

Automation Functions for Sample Analysis
To start sample analysis, it is necessary to perform column equilibration and a noise level check, and to
generate a schedule. LabSolutions enables automatic operation of these procedures, greatly improving
workflow efficiency.

Balances
Particle Size
Thermal Distribution
Analysis
Comprehensive Quantitative Results Window

A quantitative results window enables easy review of data results and each chromatogram.
LabSolutions supports the QC check by accuracy % and the range check to see whether a
quantitative value falls within the range of the calibration curve; in addition, it supports
calculation of impurity peak amounts, S/N ratio, and peak valley ratio. These various functions
greatly reduce the time required for data analysis.

Customize the Operation Platform to Fit Your Workflow

LabSolutions allows users to customize the screen icons and layouts; therefore, the graphical
user interface can be adapted according to individual preferences and workflow. Even the
rounding method and number of displayed digits for the calculation results, such as area,
height, concentration and column performance parameters, can be defined in the system for
consistency and individual laboratory requirements.

Powerful Regulatory Compliance and Data Management for a Paperless Laboratory

System administration features, including system policy, user administration, log browser, and audit trail, are provided to assist users in
FDA 21 CFR Part 11 compliance, which is supported and configurable on a stand-alone workstation as well as in a network environment.
In addition, automatic registration of PDF files, which can be generated by LabSolutions as a standard function, into the database is
available to support paperless operations in an analytical laboratory.

20
