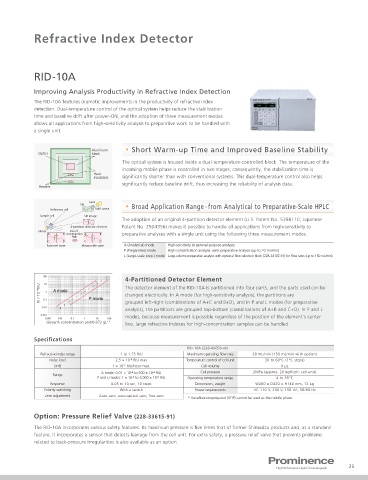

Page 25 - Shimadzu Prominence

Refractive Index Detector

RID-10A

Improving Analysis Productivity in Refractive Index Detection
The RID-10A features dramatic improvements in the productivity of refractive index
detection. Dual-temperature control of the optical system helps reduce the stabilization
time and baseline drift after power-ON, and the adoption of three measurement modes
allows all applications from high-sensitivity analysis to preparative work to be handled with
a single unit.

Aluminum Short Warm-up Time and Improved Baseline Stability
Optics block
The optical system is housed inside a dual-temperature-controlled block. The temperature of the
incoming mobile phase is controlled in two stages; consequently, the stabilization time is
Heat
insulators significantly shorter than with conventional systems. This dual-temperature control also helps
significantly reduce baseline drift, thus increasing the reliability of analysis data.
Heaters
Lens
Slit Broad Application Range -from Analytical to Preparative-Scale HPLC
Reference cell Light source
Sample cell Slit image
The adoption of an original 4-partition detector element (U.S. Patent No. 5398110; Japanese
4-partition detector element Patent No. 2504356) makes it possible to handle all applications from high-sensitivity to
Mirror Even if
A B concentration A B preparative analyses with a single unit using the following three measurement modes.
high
C D C D
Balanced state Measurable state A (Analytical) mode High-sensitivity to general-purpose analyses
P (Preparative) mode High-concentration analysis, semi-preparative analysis (up to 20 mL/min)
L (Large-scale prep.) mode Large-volume preparative analysis with optional flow selection block (228-34102-91) for flow rates (up to 150 mL/min)

100
4-Partitioned Detector Element
10
RI / 10 -4 RIU 0.1 1 The detector element of the RID-10A is partitioned into four parts, and the parts used can be
changed electrically. In A mode (for high-sensitivity analysis), the partitions are
0.01 grouped left-right (combinations of A+C and B+D), and in P and L modes (for preparative
analysis), the partitions are grouped top-bottom (combinations of A+B and C+D). In P and L
0.001 modes, because measurement is possible regardless of the position of the element's center
0.001 0.01 0.1 1 10 100
Glycerin concentration unit/0.872 gL -1 line, large refractive indexes for high-concentration samples can be handled.

Specifications
RID-10A (228-45095-xx)
Refractive index range 1 to 1.75 RIU Maximum operating flow rate 20 mL/min (150 mL/min with option)
Noise level 2.5 × 10 -9 RIU max Temperature control of cell unit 30 to 60°C (1°C steps)
Drift 1 × 10 -7 RIU/hour max. Cell volume 9 µL
A mode: 0.01 × 10 -6 to 500 × 10 -6 RIU Cell pressure 2MPa (approx. 20 kgf/cm 2 ; cell unit)
Range
P and L modes: 1 × 10 -6 to 5,000 × 10 -6 RIU Operating temperature range 4 to 35°C
Response 0.05 to 10 sec, 10 steps Dimensions, weight W260 × D420 × H140 mm, 12 kg
Polarity switching With a switch Power requirements AC 110 V, 230 V, 150 VA, 50/60 Hz
Zero adjustment Auto zero, auto-optical zero, fine zero
* Hexafluoroisopropanol (HFIP) cannot be used as the mobile phase.

Option: Pressure Relief Valve (228-33615-91)
The RID-10A incorporates various safety features. Its maximum pressure is five times that of former Shimadzu products and, as a standard
feature, it incorporates a sensor that detects leakage from the cell unit. For extra safety, a pressure relief valve that prevents problems
related to back-pressure irregularities is also available as an option.

25
