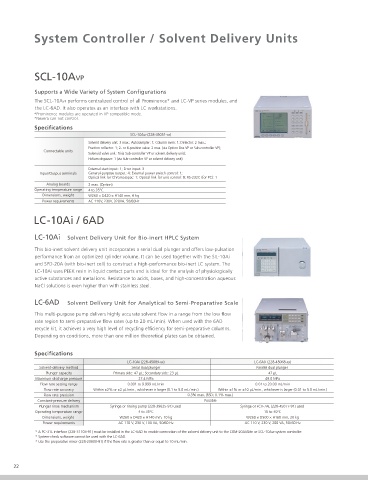

Page 22 - Shimadzu Prominence

System Controller / Solvent Delivery Units

SCL-10AVP

Supports a Wide Variety of System Configurations
The SCL-10AVP performs centralized control of all Prominence* and LC-VP series modules, and
the LC-6AD. It also operates as an interface with LC workstations.
*Prominence modules are operated in VP compatible mode.
*Nexera can not control.
Specifications
SCL-10AVP (228-45051-xx)
Solvent delivery unit: 3 max.; Autosampler: 1; Column oven: 1; Detector: 2 max.;
Fraction collector: 1; 2- or 6-position valve: 2 max. (via Option Box VP or Sub-controller VP);
Connectable units
Solenoid valve unit: 1(via Sub-controller VP or solvent delivery unit);
Helium degasser: 1 (via Sub-controller VP or solvent delivery unit)
External start input: 1; Error input: 3
Input/Output terminals General-purpose output: 4; External power switch control: 1;
Optical link for Chromatopac: 1; Optical link for unit control: 8; RS-232C (for PC): 1
Analog boards 2 max. (Option)
Operating temperature range 4 to 35°C
Dimensions, weight W260 × D420 × H140 mm, 6 kg
Power requirements AC 110V, 230V, 320VA, 50/60Hz

LC-10Ai / 6AD

LC-10Ai Solvent Delivery Unit for Bio-inert HPLC System

This bio-inert solvent delivery unit incorporates a serial dual plunger and offers low-pulsation
performance from an optimized cylinder volume. It can be used together with the SIL-10Ai
and SPD-20A (with bio-inert cell) to construct a high-performance bio-inert LC system. The
LC-10Ai uses PEEK resin in liquid contact parts and is ideal for the analysis of physiologically
active substances and metal ions. Resistance to acids, bases, and high-concentration aqueous
NaCl solutions is even higher than with stainless steel.

LC-6AD Solvent Delivery Unit for Analytical to Semi-Preparative Scale
This multi-purpose pump delivers highly accurate solvent flow in a range from the low flow
rate region to semi-preparative flow rates (up to 20 mL/min). When used with the 6AD
recycle kit, it achieves a very high level of recycling efficiency for semi-preparative columns.
Depending on conditions, more than one million theoretical plates can be obtained.

Specifications
LC-10Ai (228-45089-xx) LC-6AD (228-45068-xx)
Solvent-delivery method Serial dual plunger Parallel dual plunger
Plunger capacity Primary side: 47 μL; Secondary side: 23 μL 47 μL
Maximum discharge pressure 27.4 MPa 49.0 MPa
Flow rate setting range 0.001 to 9.999 mL/min 0.01 to 20.00 mL/min
Flow rate accuracy Within ±2% or ±2 μL/min., whichever is larger (0.1 to 5.0 mL/min.) Within ±1% or ±10 μL/min., whichever is larger (0.01 to 5.0 mL/min.)
Flow rate precision 0.3% max. (RSD: 0.1% max.)
Constant-pressure delivery Possible
Plunger rinse mechanism Syringe or rinsing pump (228-39625-91) used Syringe or FCV-7AL (228-45077-91) used
Operating temperature range 4 to 35°C 10 to 40°C
Dimensions, weight W260 × D420 × H140 mm, 10 kg W260 × D500 × H160 mm, 20 kg
Power requirements AC 110 V, 230 V, 100 VA, 50/60 Hz AC 110 V, 230 V, 200 VA, 50/60 Hz
* A PC-31L interface (228-31103-91) must be installed in the LC-6AD to enable connection of the solvent delivery unit to the CBM-20A/Alite or SCL-10AVP system controller.
* System-check software cannot be used with the LC-6AD.
* Use the preparative mixer (228-20600-91) if the flow rate is greater than or equal to 10 mL/min.
