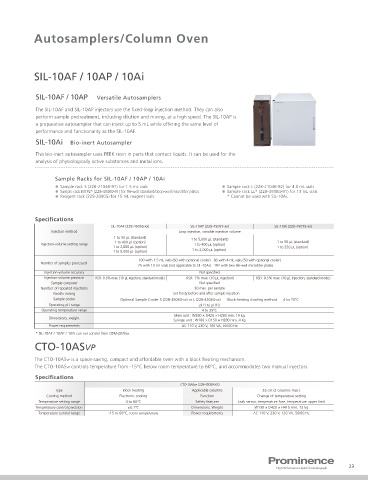

Page 23 - Shimadzu Prominence

Autosamplers/Column Oven

SIL-10AF / 10AP / 10Ai

SIL-10AF / 10AP Versatile Autosamplers

The SIL-10AF and SIL-10AP injectors use the fixed-loop injection method. They can also
perform sample pretreatment, including dilution and mixing, at a high speed. The SIL-10AP is
a preparative autosampler that can inject up to 5 mL while offering the same level of
performance and functionality as the SIL-10AF.
SIL-10Ai Bio-inert Autosampler
This bio-inert autosampler uses PEEK resin in parts that contact liquids. It can be used for the
analysis of physiologically active substances and metal ions.

Sample Racks for SIL-10AF / 10AP / 10Ai
Sample rack S (228-21046-91) for 1.5 mL vials Sample rack L (228-21046-92) for 4.0 mL vials
Sample rack MTP2* (228-40460-91) for 96-well standard/deep-well microtiter plates Sample rack LL* (228-39384-91) for 13 mL vials
Reagent rack (228-20905) for 15 mL reagent vials * Cannot be used with SIL-10Ai.

Specifications
SIL-10AF (228-45056-xx) SIL-10AP (228-45057-xx) SIL-10Ai (228-45075-xx)
Injection method Loop injection, variable injection volume
1 to 50 µL (standard) 1 to 5,000 µL (standard)
1 to 400 µL (option) 1 to 50 µL (standard)
Injection-volume setting range 1 to 400 µL (option)
1 to 2,000 µL (option) 1 to 250 µL (option)
1 to 5,000 µL (option) 1 to 2,000 µL (option)
100 with 1.5 mL vials (60 with optional cooler) 80 with 4 mL vials (50 with optional cooler)
Number of samples processed
25 with 13 mL vials (not applicable to SIL-10Ai) 192 with two 96-well microtiter plates
Injection-volume accuracy Not specified
Injection-volume precision RSD: 0.5% max. (10 µL injection, standard mode) RSD: 1% max. (10 µL injection) RSD: 0.5% max. (10 µL injection, standard mode)
Sample carryover Not specified
Number of repeated injections 30 max. per sample
Needle rinsing Set freely before and after sample injection
Sample cooler Optional Sample Cooler S (228-45063-xx) or L (228-45064-xx) Block-heating /cooling method 4 to 70°C
Operating pH range pH1 to pH10
Operating temperature range 4 to 35°C
Main unit : W260 × D420 × H280 mm, 19 kg
Dimensions, weight
Syringe unit : W100 × D150 × H280 mm, 4 kg
Power requirements AC 110 V, 230 V, 100 VA, 50/60 Hz
* SIL-10AF / 10AP / 10Ai can not control from CBM-20Alite.
CTO-10ASVP

The CTO-10ASVP is a space-saving, compact and affordable oven with a block heating mechanism.
The CTO-10ASVP controls temperature from -15°C below room temperature to 60°C, and accommodates two manual injectors.
Specifications
CTO-10ASVP (228-45059-XX)
Type Block heating Applicable columns 25 cm (2 columns max.)
Cooling method Electronic cooling Function Change of temperature setting
Temperature setting range 4 to 80°C Safety features Leak sensor, temperature fuse, temperature upper limit
Temperature control precision ±0.1°C Dimensions, Weight W130 × D420 × H415 mm, 12 kg
Temperature control range -15 to 60°C, room temperature Power requirements AC 110 V, 230 V, 120 VA, 50/60 Hz

23
High Performance Liquid Chromatograph
