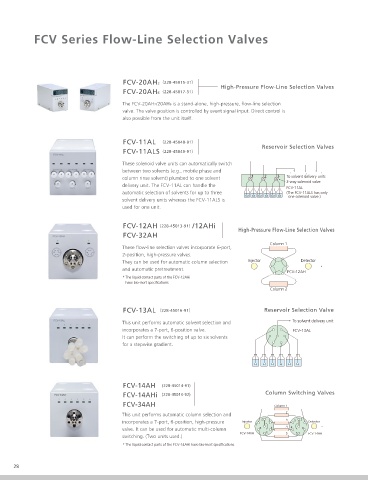

Page 28 - Shimadzu Prominence

FCV Series Flow-Line Selection Valves

FCV-20AH2 ʢ228-45015-31ʣ
High-Pressure Flow-Line Selection Valves
FCV-20AH6 ʢ228-45017-31ʣ
The FCV-20AH2/20AH6 is a stand-alone, high-pressure, flow-line selection
valve. The valve position is controlled by event signal input. Direct control is
also possible from the unit itself.

FCV-11AL ʢ228-45048-91ʣ
Reservoir Selection Valves
FCV-11ALS ʢ228-45049-91ʣ
These solenoid valve units can automatically switch
between two solvents (e.g., mobile phase and
column rinse solvent) plumbed to one solvent To solvent delivery units
3-way solenoid valve
delivery unit. The FCV-11AL can handle the
FCV-11AL
automatic selection of solvents for up to three (The FCV-11ALS has only
one solenoid valve.)
solvent delivery units whereas the FCV-11ALS is
used for one unit.

FCV-12AH ʢ228-45013-91ʣ/12AHi
High-Pressure Flow-Line Selection Valves
FCV-32AH
Column 1
These flow-line selection valves incorporate 6-port,
2-position, high-pressure valves.
They can be used for automatic column selection Injector Detector
and automatic pretreatment.
FCV-12AH
* The liquid contact parts of the FCV-12AHi
have bio-inert specifications.
Column 2

FCV-13AL ʢ228-45016-91ʣ Reservoir Selection Valve

This unit performs automatic solvent selection and To solvent delivery unit
incorporates a 7-port, 6-position valve. FCV-13AL
It can perform the switching of up to six solvents
for a stepwise gradient.

FCV-14AH (228-45014-91)
FCV-14AHi (228-45014-92) Column Switching Valves
FCV-34AH Column 1
2
This unit performs automatic column selection and
2 3 2
incorporates a 7-port, 6-position, high-pressure Injector 3 3 Detector
1 1
valve. It can be used for automatic multi-column 6 4 4 4 6
FCV-14AH 5 5 5 FCV-14AH
switching. (Two units used.)
* The liquid contact parts of the FCV-14AHi have bio-inert specifications.
