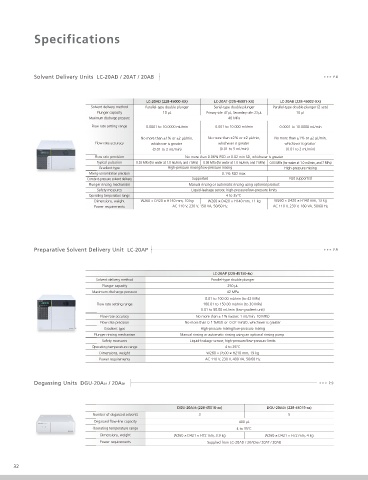

Page 32 - Shimadzu Prominence

Specifications

P.8
Solvent Delivery Units LC-20AD / 20AT / 20AB

LC-20AD (228-45000-XX) LC-20AT (228-45001-XX) LC-20AB (228-45002-XX)
Solvent delivery method Parallel-type double plunger Serial-type double plunger Parallel-type double plunger (2 sets)
Plunger capacity 10 μL Primary side: 47 μL, Secondary side: 23 μL 10 μL
Maximum discharge pressure 40 MPa
Flow rate setting range 0.0001 to 10.0000 mL/min 0.001 to 10.000 mL/min 0.0001 to 10.0000 mL/min
No more than ±1% or ±2 μL/min, No more than ±2% or ±2 μL/min, No more than ±1% or ±2 μL/min,
F
Flow rate accuracy whichever is greater whichever is greater whichever is greater
(0.01 to 2 mL/min) (0.01 to 5 mL/min) (0.01 to 2 mL/min)
F Flow rate precision No more than 0.06% RSD or 0.02 min SD, whichever is greater
Typical pulsation 0.03 MPa (for water at 1.0 mL/min, and 7 MPa) 0.08 MPa (for water at 1.0 mL/min, and 7 MPa) 0.03 MPa (for water at 1.0 mL/min, and 7 MPa)
Gradient type High-pressure mixing/low-pressure mixing High-pressure mixing
Mixi ng 0.1% RSD max.
Mixing-concentration precision
Constant-pressure solvent delivery
Cons tan Supported Not supported
Plunger rinsing mechanism Manual rinsing or automatic rinsing using optional product
Plun
g
Safety measures Liquid-leakage sensor, high-pressure/low-pressure limits
Operating temperature range 4 to 35°C
Dimensions, weight W260 × D420 × H140 mm, 10 kg W260 × D420 × H140 mm, 11 kg W260 × D420 × H140 mm, 13 kg
Power requirements AC 110 V, 230 V, 150 VA, 50/60 Hz AC 110 V, 230 V, 180 VA, 50/60 Hz

P.9
Preparative Solvent Delivery Unit LC-20AP

LC-20AP (228-45150-4x)
Solvent delivery method Parallel-type double plunger
Plunger capacity 250 μL
Maximum discharge pressure 42 MPa
0.01 to 100.00 mL/min (to 42 MPa)
Flow rate setting range 100.01 to 150.00 mL/min (to 30 MPa)
0.01 to 50.00 mL/min (low-gradient unit)
Flow rate accuracy No more than ± 1% (water, 1 mL/min, 10 MPa)
Flow rate precision No more than 0.1 %RSD or 0.02 minSD, whichever is greater
Gradient type High-pressure mixing/low-pressure mixing
Pl
Plunger rinsing mechanism Manual rinsing or automatic rinsing using an optional rinsing pump
Safety measures Liquid-leakage sensor, high-pressure/low-pressure limits
Ope
Operating temperature range 4 to 35°C
Dimensions, weight W260 × D500 × H210 mm, 19 kg
Power requirements AC 110 V, 230 V, 400 VA, 50/60 Hz

P.9
Degassing Units DGU-20A3R / 20A5R

DGU-20A3R (228-45018-xx) DGU-20A5R (228-45019-xx)
Number of degassed solvents 3 5
Nu
D Degassed flow-line capacity 400 μL
Operating temperature range 4 to 35°C
Op
Dimensions, weight W260 × D421 × H72 mm, 3.9 kg W260 × D421 × H72 mm, 4 kg
Power requirements Supplied from LC-20AD / 20ADXR / 20AT / 20AB
