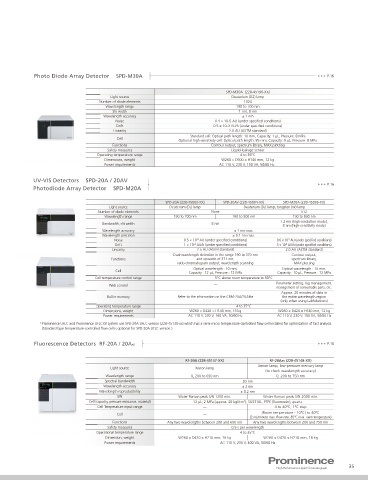

Page 35 - Shimadzu Prominence

Photo Diode Array Detector
UV-VIS Detectors
Photodiode Array Detector
*Prominence UFLC and Prominence UFLCXR system use SPD-20A UFLC version (228-45130-xx) which has a semi-micro temperature-controlled flow cell installed for optimization of fast analysis.
(Standard type temperature-controlled flow cell is optional for SPD-20A UFLC version.)
Fluorescence Detectors RF-20A / 20Axs
SPD-M30Aɹɹ 1
SPD-M30A (228-45196-XX)
Light source Deuterium (D2) lamp
N Number of diode elements 1024
Wavelength range 190 to 700 nm
Slit width 1 nm, 8 nm
Wavelength accuracy ± 1 nm
Noise 0.4 × 10-5 AU (under specified conditions)
Drift 0.5 × 10-3 AU/h (under specified conditions)
Linearity 2.0 AU (ASTM standard)
Standard cell: Optical path length: 10 mm, Capacity: 1 μL, Pressure: 8 MPa
Cell
Optional high-sensitivity cell: Optical path length: 85 mm, Capacity: 9 μL, Pressure: 8 MPa
Functions Contour output, spectrum library, MAX plotting
Safety measures Liquid-leakage sensor
Op 4 to 35°C
Operating temperature range
Dimensions, weight W260 × D500 × H140 mm, 12 kg
Power requirements AC 110 V, 230 V, 150 VA, 50/60 Hz
SPD-20A / 20AV
1
SPD-M20A
SPD-20A (228-45003-XX) SPD-20AV (228-45004-XX) SPD-M20A (228-45005-XX)
Light source Deuterium (D2) lamp Deuterium (D2) lamp, tungsten (W) lamp
Number of diode elements None 512
Wavelength range 190 to 700 nm 190 to 900 nm 190 to 800 nm
1.2 nm (high-resolution mode),
Bandwidth, slit width 8 nm
8 nm (high-sensitivity mode)
Wavelength accuracy ± 1 nm max.
Wavelength precision ± 0.1 nm max.
Noise 0.5 × 10 -5 AU (under specified conditions) 0.6 × 10 -5 AU (under specified conditions)
Drift 1 × 10 -4 AU/h (under specified conditions) 5 × 10 -4 AU/h (under specified conditions)
Linearity 2.5 AU (ASTM standard) 2.0 AU (ASTM standard)
Dual-wavelength detection in the range 190 to 370 nm Contour output,
Functions and upwards of 371 nm, spectrum library,
ratio-chromatogram output, wavelength scanning MAX plotting
Optical wavelength : 10 mm, Optical wavelength : 10 mm,
Cell
Capacity : 12 µL, Pressure : 12 MPa Capacity : 10 μL, Pressure : 12 MPa
C Cell temperature control range 5°C above room temperature to 50°C
Parameter setting, log management,
Web control —
management of consumable parts, etc.
Approx. 20 minutes of data in
Buffer memory Refer to the information on the CBM-20A/20Alite the entire wavelength region
(only when using LabSolutions)
O Operating temperature range 4 to 35°C
Dimensions, weight W260 × D420 × H140 mm, 13 kg W260 × D420 × H140 mm, 12 kg
Power requirements AC 110 V, 230 V, 160 VA, 50/60 Hz AC 110 V, 230 V, 150 VA, 50/60 Hz
1
RF-20A (228-45147-XX) RF-20Axs (228-45148-XX)
Xenon lamp, low-pressure mercury lamp
Light source Xenon lamp
(to check wavelength accuracy)
Wavelength range 0, 200 to 650 nm 0, 200 to 750 nm
Spectral bandwidth 20 nm
Wavelength accuracy ± 2 nm
Wavelength reproducibility ± 0.2 nm
S/N Water Raman peak S/N 1200 min. Water Raman peak S/N 2000 min.
Cell
Cell (capacity, pressure resistance, material) 12 μL; 2 MPa (approx. 20 kgf/cm 2 ); SUS316L, PTFE (fluororesin), quartz
(c
Cell Temperature input range — 4 to 40°C, 1°C step
(Room temperature - 10°C) to 40°C
Cell —
(2 mL/minute max. flow rate, 85°C max. oven temperature)
Functions Any two wavelengths between 200 and 650 nm Any two wavelengths between 200 and 750 nm
Safety measures 0.5 s per wavelength
O Operational temperature range 4 to 35°C
Dimension, weight W260 × D420 × H210 mm, 16 kg W260 × D420 × H210 mm, 18 kg
Power requirements AC 110 V, 230 V, 400 VA, 50/60 Hz
35
High Performance Liquid Chromatograph
