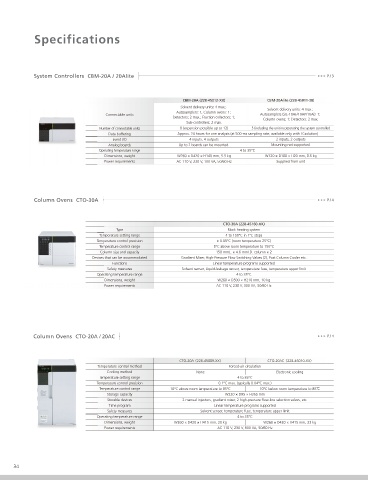

Specifications

System Controllers CBM-20A / 20Alite 1

CBM-20A (228-45012-XX) CBM-20Alite (228-45011-38)
Solvent delivery units: 4 max.;
Solvent delivery units: 4 max.;
Autosamplers: 1, Column ovens: 1;
Connectable units Autosamplers (SIL-10AF/10AP/10Ai): 1;
Detectors: 2 max.; Fraction collectors: 1; Column ovens: 1; Detectors: 2 max.
Sub-controllers: 2 max.
Number of connectable units 8 (expansion possible up to 12) 5 (including the unit incorporating the system controller)
Data buffering Approx. 24 hours for one analysis (at 500-ms sampling rate; available only with LCsolution)
Event I/O 4 inputs, 4 outputs 2 inputs, 2 outputs
Analog boards Up to 2 boards can be mounted. Mounting not supported.
Operating temperature range 4 to 35°C
Dimensions, weight W260 × D420 × H140 mm, 5.5 kg W120 × D100 × H20 mm, 0.5 kg
Power requirements AC 110 V, 230 V, 100 VA, 50/60 Hz Supplied from unit

Column Ovens CTO-30A 1

CTO-30A (228-45160-XX)
Type Block heating system
Temperature setting range 4 to 150°C in 1°C steps
Tem
T
Temperature control precision
Temp ± 0.05°C (room temperature 25°C)
Tem 5°C above room temperature to 150°C
Temperature control range
Co
Column size and capacity 150 mmL. × 4.6 mmI.D. column × 2
Dev
Devices that can be accommodated Gradient Mixer, High-Pressure Flow Switching Valves (2), Post Column Cooler etc.
vices
Functions Linear temperature programs supported
Safety measures Solvent sensor, Liquid-leakage sensor, temperature fuse, temperature upper limit
Operating temperature range 4 to 35°C
Oper
Dimensions, weight W260 × D500 × H210 mm, 10 kg
Power requirements AC 110 V, 230 V, 300 VA, 50/60 Hz
ɹ

Column Ovens CTO-20A / 20AC 1

CTO-20A ʢ228-45009-XXʣ CTO-20AC ʢ228-45010-XXʣ
Temperature control method Forced-air circulation
Cooling method None Electronic cooling
Temperature setting range 4 to 85°C
Temperature control precision 0.1°C max. (typically 0.04°C max.)
Temperature control range 10°C above room temperature to 85°C 10°C below room temperature to 85ˆ
Storage capacity W220 × D95 × H365 mm
Storable devices 2 manual injectors, gradient mixer, 2 high-pressure flow-line selection valves, etc.
Time program Linear temperature programs supported
Safety measures Solvent sensor, temperature fuse, temperature upper limit
Operating temperature range 4 to 35°C
Dimensions, weight W260 × D420 × H415 mm, 20 kg W260 × D420 × H415 mm, 23 kg
Power requirements AC 110 V, 230 V, 600 VA, 50/60 Hz
