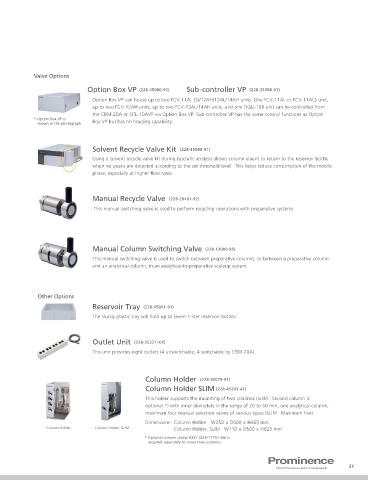

Valve Options

Option Box VP (228-45060-91) Sub-controller VP (228-35308-91)
Option Box VP can house up to two FCV-11AL (S)/12AH/13AL/14AH units. One FCV-11AL or FCV-11ALS unit,
up to two FCV-12AH units, up to two FCV-13AL/14AH units, and one DGU-10B unit can be controlled from
the CBM-20A or SCL-10AVP via Option Box VP. Sub-controller VP has the same control functions as Option
* Option Box VP is
shown in the photograph. Box VP but has no housing capability.

Solvent Recycle Valve Kit (228-45080-91)
Using a solvent recycle valve kit during isocratic analysis allows column eluent to return to the reservoir bottle
when no peaks are detected according to the set threshold level. This helps reduce consumption of the mobile
phase, especially at higher flow rates.

Manual Recycle Valve (228-20401-92)

This manual switching valve is used to perform recycling operations with preparative systems.

Manual Column Switching Valve (228-13000-95)
This manual switching valve is used to switch between preparative columns, or between a preparative column
and an analytical column, in an analytical-to-preparative scaleup system.

Other Options
Reservoir Tray (228-45041-91)
The sturdy plastic tray will hold up to seven 1-liter reservoir bottles.

Outlet Unit (228-35327-XX)
This unit provides eight outlets (4 unswitchable, 4 switchable by CBM-20A).

Column Holder (228-45079-91)
Column Holder SLIM (228-45203-41)
This holder supports the mounting of two columns (SLIM : Second column is
optional.*) with inner diameters in the range of 20 to 50 mm, one analytical column,
maximum four manual selection valves of various types (SLIM : Maximum five).
Dimensions : Column Holder W250 × D400 × H465 mm
Column Holder Column Holder, SLIM Column Holder, SLIM W110 × D500 × H625 mm
* Optional column clamp ASSY (228-17701-94) is
required separately to mount two columns.
