Page 9 - Shimadzu GC-8A
P. 9

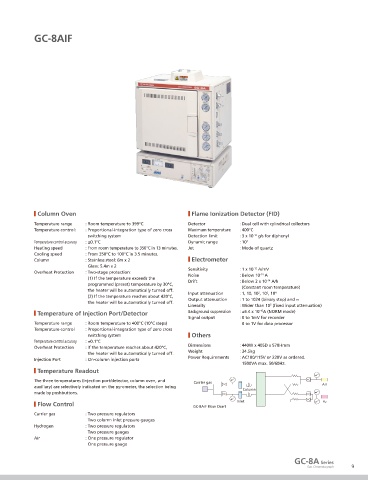

GC-8AIF



































             Column Oven                                        Flame Ionization Detector (FID)
            Temperature range  : Room temperature to 399°C     Detector         : Dual cell with cylindrical collectors
            Temperature control:  : Proportional-integration type of zero cross   Maximum temperature  : 400°C
                                                                                     -12
                               switching system                Detection limit  : 3 x 10  g/s for diphenyl
            Temperature control accuracy  : ±0.1°C             Dynamic range    : 10 7
            Heating speed    : From room temperature to 350°C in 13 minutes.  Jet  : Mode of quartz
            Cooling speed    : From 350°C to 100°C in 3.5 minutes.
            Column           : Stainless steel: 6m x 2          Electrometer
                               Glass: 5.4m x 2
                                                                                     -12
                                                               Sensitivity      : 1 x 10  A/mV
            Overheat Protection  : Two-stage protection:
                                                                                       -14
                                                               Noise            : Below 10  A
                               (1) If the temperature exceeds the
                                                                                         -14
                                                               Drift            : Below 2 x 10  A/h
                               programmed (preset) temperature by 30°C,
                                                                                  (Constant room temperature)
                               the heater will be automatically turned off.
                                                                                       2
                                                                                         3
                                                               Input attenuation  : 1, 10, 10 , 10 , 10 4
                               (2) If the temperature reaches about 420°C,
                                                               Output attenuation  : 1 to 1024 (binary step) and ∞
                               the heater will be automatically turned off.
                                                               Linearity        : Wider than 10  (fixed input attenuation)
                                                                                          5
                                                                                       -10
             Temperature of Injection Port/Detector            Background suppression  : ±6.4 x 10 A (NORM mode)
                                                               Signal output    : 0 to 1mV for recorder
            Temperature range  : Room temperature to 400°C (10°C steps)           0 to 1V for data processor
            Temperature control  : Proportional-integration type of zero cross
                               switching system                 Others
            Temperature control accuracy  : ±0.1°C
                                                               Dimensions       : 440W x 405D x 570Hmm
            Overheat Protection  : If the temperature reaches about 420°C,
                                                               Weight           : 34.5kg
                               the heater will be automatically turned off.
                                                               Power Requirements  : AC100/115V or 220V as ordered.
            Injection Port   : On-column injection ports
                                                                                  1500VA max. 50/60Hz.
             Temperature Readout
            The three temperatures (injection port/detector, column oven, and   Carrier gas
            auxiliary) are selectively indicated on the pyrometer, the selection being                      Air
                                                                                 Column
            made by pushbuttons.
                                                                               Inlet                        H2
             Flow Control                                        GC-8AIF Flow Chart
            Carrier gas      : Two pressure regulators
                               Two column inlet pressure gauges
            Hydrogen         : Two pressure regulators
                               Two pressure gauges
            Air              : One pressure regulator
                               One pressure gauge
                                                                                                   GC-8A Series
                                                                                                       Gas Chromatograph  9
