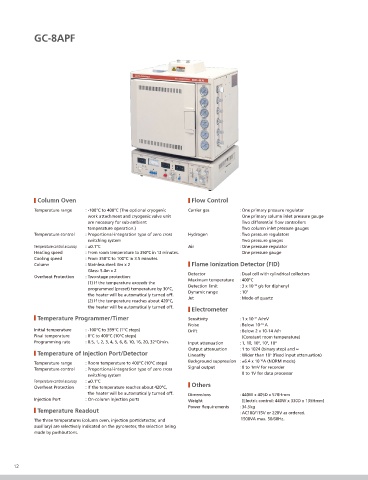

GC-8APF
































             Column Oven                                        Flow Control
            Temperature range  : -100°C to 400°C (The optional cryogenic  Carrier gas  : One primary pressure regulator
                               work attachment and cryogenic valve unit           One primary column inlet pressure gauge
                               are necessary for sub-ambient                      Two differential flow controllers
                               temperature operation.)                            Two column inlet pressure gauges
            Temperature control  : Proportional-integration type of zero cross   Hydrogen  : Two pressure regulators
                               switching system                                   Two pressure gauges
            Temperature control accuracy  : ±0.1°C             Air              : One pressure regulator
            Heating speed    : From room temperature to 350°C in 13 minutes.      One pressure gauge
            Cooling speed    : From 350°C to 100°C in 3.5 minutes.
            Column           : Stainless steel: 6m x 2          Flame Ionization Detector (FID)
                               Glass: 5.4m x 2
                                                               Detector         : Dual cell with cylindrical collectors
            Overheat Protection  : Two-stage protection:
                                                               Maximum temperature  : 400°C
                               (1) If the temperature exceeds the
                                                                                     -12
                                                               Detection limit  : 3 x 10  g/s for diphenyl
                               programmed (preset) temperature by 30°C,
                                                               Dynamic range    : 10 7
                               the heater will be automatically turned off.
                                                               Jet              : Mode of quartz
                               (2) If the temperature reaches about 420°C,
                               the heater will be automatically turned off.
                                                                Electrometer
             Temperature Programmer/Timer                      Sensitivity      : 1 x 10  A/mV
                                                                                     -12
                                                                                       -14
                                                               Noise            : Below 10  A
            Initial temperature  : -100°C to 399°C (1°C steps)  Drift           : Below 2 x 10-14 A/h
            Final temperature  : 0°C to 400°C (10°C steps)                        (Constant room temperature)
            Programming rate  : 0.5, 1, 2, 3, 4, 5, 6, 8, 10, 16, 20, 32°C/min.  Input attenuation  : 1, 10, 10 , 10 , 10 4
                                                                                       2
                                                                                         3
                                                               Output attenuation  : 1 to 1024 (binary step) and ∞
             Temperature of Injection Port/Detector            Linearity        : Wider than 10  (fixed input attenuation)
                                                                                          5
                                                                                       -10
            Temperature range  : Room temperature to 400°C (10°C steps)  Background suppression : ±6.4 x 10 A (NORM mode)
            Temperature control  : Proportional-integration type of zero cross   Signal output  : 0 to 1mV for recorder
                               switching system                                   0 to 1V for data processor
            Temperature control accuracy  : ±0.1°C
            Overheat Protection  : If the temperature reaches about 420°C,   Others
                               the heater will be automatically turned off.  Dimensions  : 440W x 405D x 570Hmm
            Injection Port   : On-column injection ports       Weight             (Electric control: 440W x 330D x 135Hmm)
                                                               Power Requirements  : 34.5kg
             Temperature Readout
                                                                                : AC100/115V or 220V as ordered.
            The three temperatures (column oven, injection port/detector, and    1500VA max. 50/60Hz.
            auxiliary) are selectively indicated on the pyrometer, the selection being
            made by pushbuttons.
