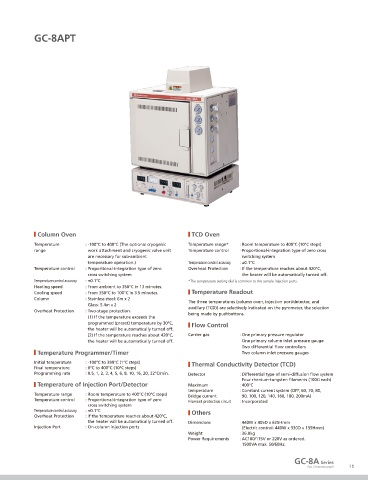

GC-8APT







































             Column Oven                                        TCD Oven
            Temperature      : -100°C to 400°C (The optional cryogenic   Temperature range*  : Room temperature to 400°C (10°C steps)
            range              work attachment and cryogenic valve unit   Temperature control  : Proportional-integration type of zero cross
                               are necessary for sub-ambient                      switching system
                               temperature operation.)         Temperature control accuracy  : ±0.1°C
            Temperature control  : Proportional-integration type of zero   Overheat Protection  : If the temperature reaches about 420°C,
                               cross switching system                             the heater will be automatically turned off.
            Temperature control accuracy  : ±0.1°C             *The temperature setting dial is common to the sample injection ports.
            Heating speed    : From ambient to 350°C in 13 minutes.
            Cooling speed    : From 350°C to 100°C in 3.5 minutes.  Temperature Readout
            Column           : Stainless steel: 6m x 2
                                                               The three temperatures (column oven, injection port/detector, and
                               Glass: 5.4m x 2
                                                               auxiliary (TCD)) are selectively indicated on the pyrometer, the selection
            Overheat Protection  : Two-stage protection:
                                                               being made by pushbuttons.
                               (1) If the temperature exceeds the
                               programmed (preset) temperature by 30°C,  Flow Control
                               the heater will be automatically turned off.
                               (2) If the temperature reaches about 420°C,  Carrier gas  : One primary pressure regulator
                               the heater will be automatically turned off.       One primary column inlet pressure gauge
                                                                                  Two differential flow controllers
             Temperature Programmer/Timer                                         Two column inlet pressure gauges
            Initial temperature  : -100°C to 399°C (1°C steps)  Thermal Conductivity Detector (TCD)
            Final temperature  : 0°C to 400°C (10°C steps)
            Programming rate  : 0.5, 1, 2, 3, 4, 5, 6, 8, 10, 16, 20, 32°C/min.  Detector  : Differential type of semi-diffusion flow system
                                                                                  Four rhenium-tungsten filaments (100Ω each)
             Temperature of Injection Port/Detector            Maximum          : 400°C
                                                               temperature      : Constant current system (OFF, 60, 70, 80,
            Temperature range  : Room temperature to 400°C (10°C steps)
                                                               Bridge current     90, 100, 120, 140, 160, 180, 200mA)
            Temperature control  : Proportional-integration type of zero
                                                               Filament protection circuit  : Incorporated
                               cross switching system
            Temperature control accuracy  : ±0.1°C              Others
            Overheat Protection  : If the temperature reaches about 420°C,
                               the heater will be automatically turned off.  Dimensions  : 440W x 405D x 625Hmm
            Injection Port   : On-column injection ports                          (Electric control: 440W x 330D x 135Hmm)
                                                               Weight           : 36.0kg
                                                               Power Requirements  : AC100/115V or 220V as ordered.
                                                                                  1500VA max. 50/60Hz.

                                                                                                   GC-8A Series
                                                                                                       Gas Chromatograph  11
