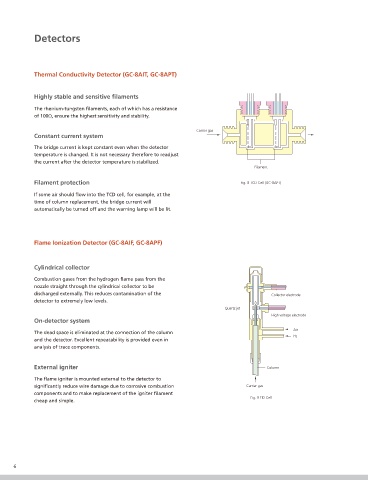

Detectors






            Thermal Conductivity Detector (GC-8AIT, GC-8APT)



            Highly stable and sensitive filaments
            The rhenium-tungsten filaments, each of which has a resistance
            of 100Ω, ensure the highest sensitivity and stability.

                                                                  Carrier gas
            Constant current system
            The bridge current is kept constant even when the detector
            temperature is changed. It is not necessary therefore to readjust
            the current after the detector temperature is stabilized.
                                                                                     Filament

            Filament protection                                                  Fig. 8 TCD Cell (GC-8APT)

            If some air should flow into the TCD cell, for example, at the
            time of column replacement, the bridge current will
            automatically be turned off and the warning lamp will be lit.





            Flame Ionization Detector (GC-8AIF, GC-8APF)



            Cylindrical collector
            Combustion gases from the hydrogen flame pass from the
            nozzle straight through the cylindrical collector to be
            discharged externally. This reduces contamination of the                       Collector electrode
            detector to extremely low levels.
                                                                            Quartz jet
                                                                                           High voltage electrode
            On-detector system
                                                                                                  Air
            The dead space is eliminated at the connection of the column
                                                                                                  H2
            and the detector. Excellent repeatability is provided even in
            analysis of trace components.

            External igniter                                                             Column

            The flame igniter is mounted external to the detector to
            significantly reduce wire damage due to corrosive combustion           Carrier gas
            components and to make replacement of the igniter filament
                                                                                    Fig. 9 FID Cell
            cheap and simple.
