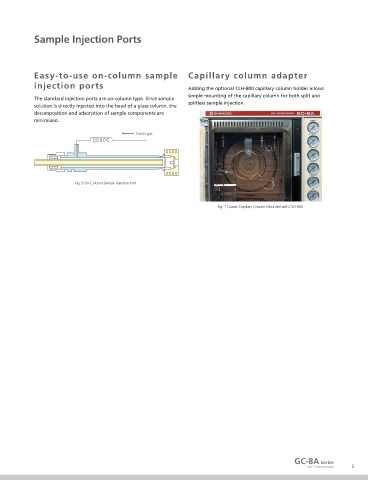

Sample Injection Ports






            Easy-to-use on-column sample                       Capillary column adapter
            injection ports                                    Adding the optional CLH-800 capillary column holder allows
                                                               simple mounting of the capillary column for both split and
            The standard injection ports are on-column type. Since sample
                                                               splitless sample injection.
            solution is directly injected into the head of a glass column, the
            decomposition and adsorption of sample components are
            minimized.

                                              Carrier gas









                          Fig. 6 On-Column Sample Injection Port


                                                                         Fig. 7 Quartz Capillary Column Mounted with CLH-800



















































                                                                                                   GC-8A Series
                                                                                                       Gas Chromatograph  5
