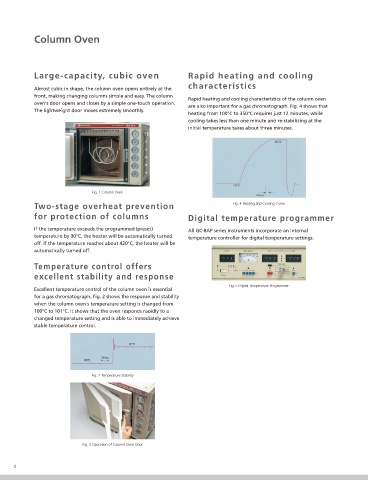

Column Oven






            Large-capacity, cubic oven                         Rapid heating and cooling
                                                               characteristics
            Almost cubic in shape, the column oven opens entirely at the
            front, making changing columns simple and easy. The column
                                                               Rapid heating and cooling characteristics of the column oven
            oven's door opens and closes by a simple one-touch operation.
                                                               are also important for a gas chromatograph. Fig. 4 shows that
            The lightweight door moves extremely smoothly.
                                                               heating from 100°C to 350°C requires just 12 minutes, while
                                                               cooling takes less than one minute and re-stabilizing at the
                                                               initial temperature takes about three minutes.











                                Fig. 1 Column Oven

            Two-stage overheat prevention                                     Fig. 4 Heating and Cooling Curve
            for protection of columns                          Digital temperature programmer

            If the temperature exceeds the programmed (preset)   All GC-8AP series instruments incorporate an internal
            temperature by 30°C, the heater will be automatically turned   temperature controller for digital temperature settings.
            off. If the temperature reaches about 420°C, the heater will be
            automatically turned off.

            Temperature control offers
            excellent stability and response

                                                                             Fig. 5 Digital Temperature Programmer
            Excellent temperature control of the column oven is essential
            for a gas chromatograph. Fig. 2 shows the response and stability
            when the column oven's temperature setting is changed from
            100°C to 101°C. It shows that the oven responds rapidly to a
            changed temperature setting and is able to immediately achieve
            stable temperature control.








                               Fig. 2 Temperature Stability













                            Fig. 3 Operation of Column Oven Door
