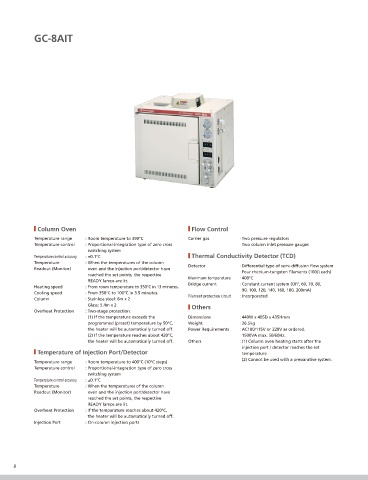

GC-8AIT






































             Column Oven                                        Flow Control
            Temperature range  : Room temperature to 399°C     Carrier gas      : Two pressure regulators
            Temperature control  : Proportional-integration type of zero cross      Two column inlet pressure gauges
                               switching system
            Temperature control accuracy  : ±0.1°C              Thermal Conductivity Detector (TCD)
            Temperature      : When the temperatures of the column
                                                               Detector         : Differential type of semi-diffusion flow system
            Readout (Monitor)     oven and the injection port/detector have
                                                                                  Four rhenium-tungsten filaments (100Ω each)
                               reached the set points, the respective
                                                               Maximum temperature  : 400°C
                               READY lamps are lit.
                                                               Bridge current   : Constant current system (OFF, 60, 70, 80,
            Heating speed    : From room temperature to 350°C in 13 minutes.
                                                                                  90, 100, 120, 140, 160, 180, 200mA)
            Cooling speed    : From 350°C to 100°C in 3.5 minutes.
                                                               Filament protection circuit  : Incorporated
            Column           : Stainless steel: 6m x 2
                               Glass: 5.4m x 2                  Others
            Overheat Protection  : Two-stage protection:
                               (1) If the temperature exceeds the   Dimensions  : 440W x 405D x 435Hmm
                               programmed (preset) temperature by 50°C,  Weight  : 26.5kg
                               the heater will be automatically turned off.  Power Requirements  : AC100/115V or 220V as ordered.
                               (2) If the temperature reaches about 420°C,        1500VA max. 50/60Hz.
                               the heater will be automatically turned off.  Others  : (1) Column oven heating starts after the
                                                                                  injection port / detector reaches the set
             Temperature of Injection Port/Detector                               temperature.
                                                                                  (2) Cannot be used with a preparative system.
            Temperature range  : Room temperature to 400°C (10°C steps)
            Temperature control  : Proportional-integration type of zero cross
                               switching system
            Temperature control accuracy  : ±0.1°C
            Temperature      : When the temperatures of the column
            Readout (Monitor)    oven and the injection port/detector have
                               reached the set points, the respective
                               READY lamps are lit.
            Overheat Protection  : If the temperature reaches about 420°C,
                               the heater will be automatically turned off.
            Injection Port   : On-column injection ports
