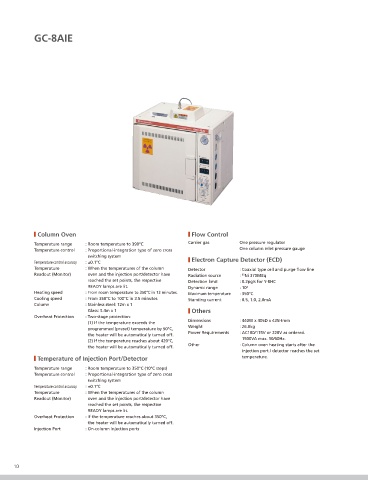

GC-8AIE







































             Column Oven                                        Flow Control
                                                               Carrier gas      One pressure regulator
            Temperature range  : Room temperature to 399°C
                                                                                One column inlet pressure gauge
            Temperature control  : Proportional-integration type of zero cross
                               switching system
            Temperature control accuracy  : ±0.1°C              Electron Capture Detector (ECD)
            Temperature      : When the temperatures of the column   Detector   : Coaxial type cell and purge flow line
            Readout (Monitor)    oven and the injection port/detector have   Radiation source  :  Ni 370MBq
                                                                                 63
                               reached the set points, the respective    Detection limit  : 0.2pg/s for Υ-BHC
                               READY lamps are lit.            Dynamic range    : 10 4
            Heating speed    : From room temperature to 350°C in 13 minutes.  Maximum temperature  : 350°C
            Cooling speed    : From 350°C to 100°C in 3.5 minutes.  Standing current  : 0.5, 1.0, 2.0mA
            Column           : Stainless steel: 12m x 1
                               Glass: 5.4m x 1                  Others
            Overheat Protection  : Two-stage protection:
                                                               Dimensions       : 440W x 405D x 435Hmm
                               (1) If the temperature exceeds the
                                                               Weight           : 26.0kg
                               programmed (preset) temperature by 50°C,
                                                               Power Requirements  : AC100/115V or 220V as ordered.
                               the heater will be automatically turned off.
                                                                                  1500VA max. 50/60Hz.
                               (2) If the temperature reaches about 420°C,
                                                               Other            : Column oven heating starts after the
                               the heater will be automatically turned off.
                                                                                  injection port / detector reaches the set
             Temperature of Injection Port/Detector                               temperature.
            Temperature range  : Room temperature to 350°C (10°C steps)
            Temperature control  : Proportional-integration type of zero cross
                               switching system
            Temperature control accuracy  : ±0.1°C
            Temperature      : When the temperatures of the column
            Readout (Monitor)    oven and the injection port/detector have
                               reached the set points, the respective
                               READY lamps are lit.
            Overheat Protection  : If the temperature reaches about 350°C,
                               the heater will be automatically turned off.
            Injection Port   : On-column injection ports
