Any User

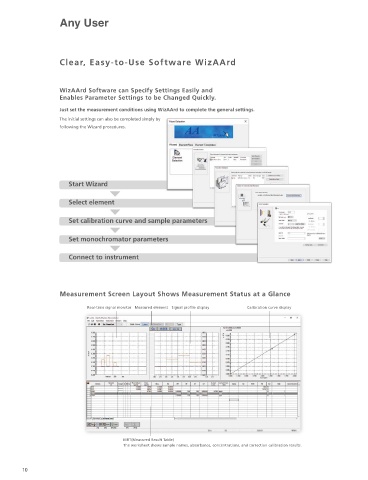

Clear, Easy-to-Use Software WizAArd Functionality for Supporting Analytical Condition Development

WizAArd Software can Specify Settings Easily and Automatic Gas Flowrate Optimization
Enables Parameter Settings to be Changed Quickly. The optimal flame gas flowrate value must be determined when using organic solvents
or after changing the burner height. The AA-7800 performs that gas flowrate
Just set the measurement conditions using WizAArd to complete the general settings.
optimization process automatically.
The initial settings can also be completed simply by It detects the gas flowrate that results in the highest sensitivity by measuring the
following the Wizard procedures. change in the absorbance of blank and standard samples due to gas flowrate, displays
the absorbance difference in the window, and then automatically sets the flowrate to
that value.
Automatic Burner Height Optimization
(Models with AAC)
The absorption sensitivity of flame analysis can vary depending on burner height. This is
because flame temperature can vary due to the burner height, sensitivity levels can vary
Start Wizard due to different flame types, even for the same height, and the absorption sensitivity
can also be influenced by components in the matrix. The AA-7800F/AAC automatically
searches for the optimal setting by varying the burner height in 0.5 mm steps.
Select element
Optimum Furnace Program Search
This function can automatically perform the steps involved in measuring data as the
Set calibration curve and sample parameters graphite tube heating parameters are gradually varied and then plotting that data as a
graph in the window. That enables the optimal atomization and ashing temperatures to
Set monochromator parameters be determined.

Connect to instrument

Supports System Management and Accuracy Control

Measurement Screen Layout Shows Measurement Status at a Glance Hardware Validation Software Included Standard

Real-time signal monitor Measured element Signal profile display Calibration curve display Instrument performance can be evaluated easily using the hardware validation software included standard with the system. If
used in combination with an autosampler, it can automatically inspect the wavelength accuracy, noise level, baseline drift,
absorbance/repeatability, and other factors and print results from comparing performance to passing criteria.
Precision Control (QA/QC)
Functionality
Reliable measurement results are obtained
thanks to QA/QC functions including checks
of calibration curve correlation coefficients
and recovery rates.

Variety of Data Output
In addition to typical printing of data and summary reports, the text file output
function in the WizAArd software can also be used to output tab-delimited text
files to specified folders.

MRT(Measured Result Table)
The worksheet shows sample names, absorbance, concentrations, and correction calibration results. Example of Output Using Text File Output Function
