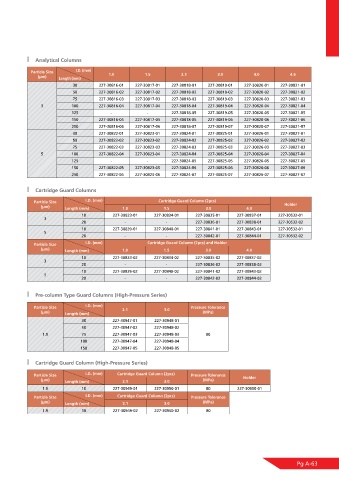

Page 67 - Shimadu Consumables Catalog
P. 67
Analytical Columns
Particle Size I.D. (mm) 1.0 1.5 2.1 3.0 4.0 4.6
(μm) Length (mm)
30 227-30816-01 227-30817-01 227-30818-01 227-30819-01 227-30820-01 227-30821-01
50 227-30816-02 227-30817-02 227-30818-02 227-30819-02 227-30820-02 227-30821-02
75 227-30816-03 227-30817-03 227-30818-03 227-30819-03 227-30820-03 227-30821-03
3 100 227-30816-04 227-30817-04 227-30818-04 227-30819-04 227-30820-04 227-30821-04
125 - - 227-30818-05 227-30819-05 227-30820-05 227-30821-05
150 227-30816-05 227-30817-05 227-30818-06 227-30819-06 227-30820-06 227-30821-06
250 227-30816-06 227-30817-06 227-30818-07 227-30819-07 227-30820-07 227-30821-07
30 227-30822-01 227-30823-01 227-30824-01 227-30825-01 227-30826-01 227-30827-01
50 227-30822-02 227-30823-02 227-30824-02 227-30825-02 227-30826-02 227-30827-02
75 227-30822-03 227-30823-03 227-30824-03 227-30825-03 227-30826-03 227-30827-03
5 100 227-30822-04 227-30823-04 227-30824-04 227-30825-04 227-30826-04 227-30827-04
125 - - 227-30824-05 227-30825-05 227-30826-05 227-30827-05
150 227-30822-05 227-30823-05 227-30824-06 227-30825-06 227-30826-06 227-30827-06
250 227-30822-06 227-30823-06 227-30824-07 227-30825-07 227-30826-07 227-30827-07
Cartridge Guard Columns
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30833-01 227-30834-01 227-30835-01 227-30837-01 227-30532-01
3
20 - - 227-30836-01 227-30838-01 227-30532-02
10 227-30839-01 227-30840-01 227-30841-01 227-30843-01 227-30532-01
5
20 - - 227-30842-01 227-30844-01 227-30532-02
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30833-02 227-30834-02 227-30835-02 227-30837-02
3
20 - - 227-30836-02 227-30838-02
10 227-30839-02 227-30840-02 227-30841-02 227-30843-02
5
20 - - 227-30842-02 227-30844-02
Pre-column Type Guard Columns (High-Pressure Series)
Particle Size I.D. (mm) 2.1 3.0 Pressure Tolerance
(μm) Length (mm) (MPa)
30 227-30947-01 227-30948-01
50 227-30947-02 227-30948-02
1.9 75 227-30947-03 227-30948-03 80
100 227-30947-04 227-30948-04
150 227-30947-05 227-30948-05
Cartridge Guard Column (High-Pressure Series)
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Pressure Tolerance Holder
(μm) Length (mm) 2.1 3.0 (MPa)
1.9 10 227-30949-01 227-30950-01 80 227-30950-01
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Pressure Tolerance
(μm) Length (mm) 2.1 3.0 (MPa)
1.9 10 227-30949-02 227-30950-02 80
Pg A-63
