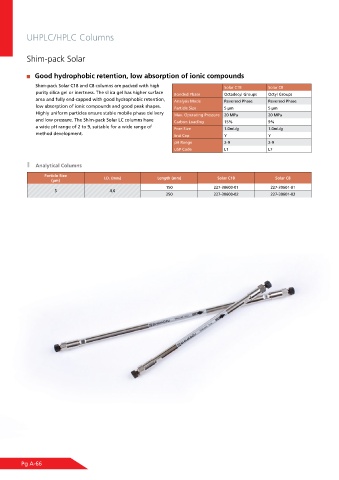

Page 70 - Shimadu Consumables Catalog
P. 70
UHPLC/HPLC Columns
Shim-pack Solar
Good hydrophobic retention, low absorption of ionic compounds
Shim-pack Solar C18 and C8 columns are packed with high Solar C18 Solar C8
purity silica gel or inertness. The silica gel has higher surface Bonded Phase Octadecyl Groups Octyl Groups
area and fully end-capped with good hydrophobic retention, Analysis Mode Reversed Phase Reversed Phase
low absorption of ionic compounds and good peak shapes. Particle Size 5 μm 5 μm
Highly uniform particles ensure stable mobile phase delivery Max. Operating Pressure 20 MPa 20 MPa
and low pressure. The Shim-pack Solar LC columns have Carbon Loading 15% 9%
a wide pH range of 2 to 9, suitable for a wide range of Pore Size 1.0mL/g 1.0mL/g
method development. End Cap Y Y
pH Range 2-9 2-9
USP Code L1 L7
Analytical Columns
Particle Size
(μm) I.D. (mm) Length (mm) Solar C18 Solar C8
150 227-30600-01 227-30601-01
5 4.6
250 227-30600-02 227-30601-02
Pg A-66
