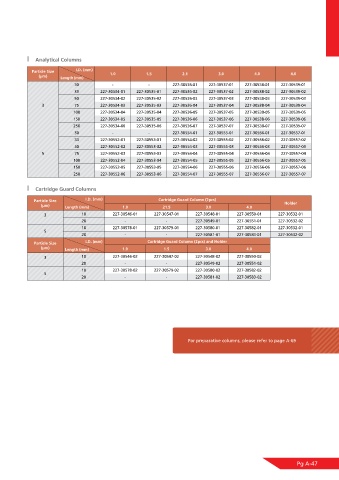

Page 51 - Shimadu Consumables Catalog

Analytical Columns

Particle Size I.D. (mm) 1.0 1.5 2.1 3.0 4.0 4.6
(μm) Length (mm)
30 - - 227-30536-01 227-30537-01 227-30538-01 227-30539-01
33 227-30534-01 227-30535-01 227-30536-02 227-30537-02 227-30538-02 227-30539-02
50 227-30534-02 227-30535-02 227-30536-03 227-30537-03 227-30538-03 227-30539-03
3 75 227-30534-03 227-30535-03 227-30536-04 227-30537-04 227-30538-04 227-30539-04
100 227-30534-04 227-30535-04 227-30536-05 227-30537-05 227-30538-05 227-30539-05
150 227-30534-05 227-30535-05 227-30536-06 227-30537-06 227-30538-06 227-30539-06
250 227-30534-06 227-30535-06 227-30536-07 227-30537-07 227-30538-07 227-30539-07
30 - - 227-30554-01 227-30555-01 227-30556-01 227-30557-01
33 227-30552-01 227-30553-01 227-30554-02 227-30555-02 227-30556-02 227-30557-02
50 227-30552-02 227-30553-02 227-30554-03 227-30555-03 227-30556-03 227-30557-03
5 75 227-30552-03 227-30553-03 227-30554-04 227-30555-04 227-30556-04 227-30557-04
100 227-30552-04 227-30553-04 227-30554-05 227-30555-05 227-30556-05 227-30557-05
150 227-30552-05 227-30553-05 227-30554-06 227-30555-06 227-30556-06 227-30557-06
250 227-30552-06 227-30553-06 227-30554-07 227-30555-07 227-30556-07 227-30557-07

Cartridge Guard Columns

Particle Size I.D. (mm) Cartridge Guard Column (2pcs)
(μm) Length (mm) 1.0 21.5 3.0 4.0 Holder
3 10 227-30546-01 227-30547-01 227-30548-01 227-30550-01 227-30532-01
20 - - 227-30549-01 227-30551-01 227-30532-02
10 227-30578-01 227-30579-01 227-30580-01 227-30582-01 227-30532-01
5
20 - - 227-30581-01 227-30583-01 227-30532-02
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
3 10 227-30546-02 227-30547-02 227-30548-02 227-30550-02
20 - - 227-30549-02 227-30551-02
10 227-30578-02 227-30579-02 227-30580-02 227-30582-02
5
20 - - 227-30581-02 227-30583-02

For preparative columns, please refer to page A-69

Pg A-47
