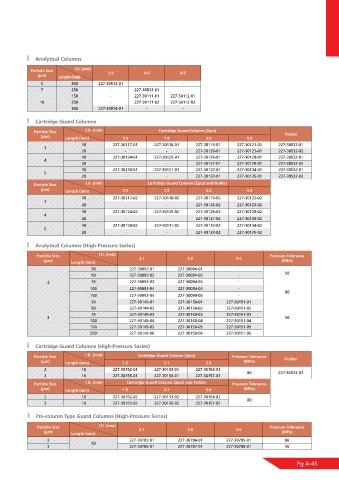

Page 49 - Shimadu Consumables Catalog

Analytical Columns

Particle Size I.D. (mm) 3.9 4.0 4.6
(μm) Length (mm)
5 300 227-30812-01 - -
7 250 - 227-30813-01 -
150 - 227-30111-01 227-30112-01
10 250 - 227-30111-02 227-30112-02
300 227-30814-01 - -

Cartridge Guard Columns
Particle Size I.D. (mm) Cartridge Guard Column (2pcs)
(μm) Length (mm) 1.0 1.5 3.0 4.0 Holder
10 227-30117-01 227-30118-01 227-30119-01 227-30121-01 227-30532-01
3
20 - - 227-30120-01 227-30123-01 227-30532-02
10 227-30124-01 227-30125-01 227-30126-01 227-30128-01 227-30532-01
4
20 - - 227-30127-01 227-30129-01 227-30532-02
10 227-30130-01 227-30131-01 227-30132-01 227-30134-01 227-30532-01
5
20 - - 227-30133-01 227-30135-01 227-30532-02
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30117-02 227-30118-02 227-30119-02 227-30122-02
3
20 - - 227-30120-02 227-30123-02
10 227-30124-02 227-30125-02 227-30126-02 227-30128-02
4
20 - - 227-30127-02 227-30129-02
10 227-30130-02 227-30131-02 227-30132-02 227-30134-02
5
20 - - 227-30133-02 227-30135-02
Analytical Columns (High-Pressure Series)

Particle Size I.D. (mm) 2.1 3.0 4.6 Pressure Tolerance
(μm) Length (mm) (MPa)
30 227-30093-01 227-30094-01 -
50 227-30093-02 227-30094-02 - 50
2 75 227-30093-03 227-30094-03 -
100 227-30093-04 227-30094-04 -
80
150 227-30093-05 227-30094-05 -
30 227-30149-01 227-30150-01 227-30151-01
50 227-30149-02 227-30150-02 227-30151-02
75 227-30149-03 227-30150-03 227-30151-03
3 50
100 227-30149-04 227-30150-04 227-30151-04
150 227-30149-05 227-30150-05 227-30151-05
250 227-30149-06 227-30150-06 227-30151-06

Cartridge Guard Columns (High-Pressure Series)

Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Pressure Tolerance Holder
(μm) Length (mm) 1.5 2.1 3.0 (MPa)
2 10 227-30152-01 227-30153-01 227-30154-01
80 227-30533-01
3 10 227-30155-01 227-30156-01 227-30157-01
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder Pressure Tolerance
(μm) Length (mm) 1.5 2.1 3.0 (MPa)
2 10 227-30152-02 227-30153-02 227-30154-02
80
3 10 227-30155-02 227-30156-02 227-30157-02
Pre-column Type Guard Columns (High-Pressure Series)

Particle Size I.D. (mm) Pressure Tolerance
(μm) Length (mm) 2.1 3.0 4.6 (MPa)
2 227-30783-01 227-30784-01 227-30785-01 80
30
3 227-30786-01 227-30787-01 227-30788-01 50

Pg A-45
