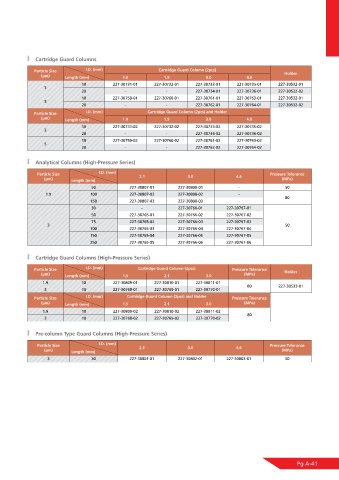

Page 45 - Shimadu Consumables Catalog
P. 45
Cartridge Guard Columns
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30731-01 227-30732-01 227-30733-01 227-30735-01 227-30532-01
3
20 - - 227-30734-01 227-30736-01 227-30532-02
10 227-30759-01 227-30760-01 227-30761-01 227-30763-01 227-30532-01
5
20 - - 227-30762-01 227-30764-01 227-30532-02
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder
(μm) Length (mm) 1.0 1.5 3.0 4.0
10 227-30731-02 227-30732-02 227-30733-02 227-30735-02
3
20 - - 227-30734-02 227-30736-02
10 227-30759-02 227-30760-02 227-30761-02 227-30763-02
5
20 - - 227-30762-02 227-30764-02
Analytical Columns (High-Pressure Series)
Particle Size I.D. (mm) 2.1 3.0 4.6 Pressure Tolerance
(μm) Length (mm) (MPa)
50 227-30807-01 227-30808-01 - 50
1.9 100 227-30807-02 227-30808-02 -
80
150 227-30807-03 227-30808-03 -
30 - 227-30766-01 227-30767-01
50 227-30765-01 227-30766-02 227-30767-02
75 227-30765-02 227-30766-03 227-30767-03
3 50
100 227-30765-03 227-30766-04 227-30767-04
150 227-30765-04 227-30766-05 227-30767-05
250 227-30765-05 227-30766-06 227-30767-06
Cartridge Guard Columns (High-Pressure Series)
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) Pressure Tolerance Holder
(μm) Length (mm) 1.5 2.1 3.0 (MPa)
1.9 10 227-30809-01 227-30810-01 227-30811-01
80 227-30533-01
3 10 227-30768-01 227-30769-01 227-30770-01
Particle Size I.D. (mm) Cartridge Guard Column (2pcs) and Holder Pressure Tolerance
(μm) Length (mm) 1.5 2.1 3.0 (MPa)
1.9 10 227-30809-02 227-30810-02 227-30811-02
80
3 10 227-30768-02 227-30769-02 227-30770-02
Pre-column Type Guard Columns (High-Pressure Series)
Particle Size I.D. (mm) 2.1 3.0 4.6 Pressure Tolerance
(μm) Length (mm) (MPa)
3 30 227-30801-01 227-30802-01 227-30803-01 50
Pg A-41
