Page 11 - ICPMS-2040 Series

Software

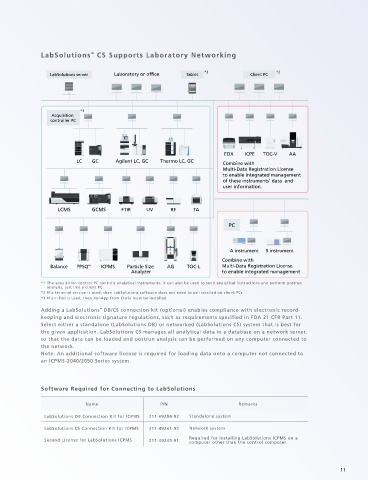

New LabSolutions ICPMS Software LabSolutions CS Supports Laboratory Networking
™
™
The new version of LabSolutions ICPMS software displays all necessary information in a single LabSolutions server Laboratory or office Tablet *3 Client PC *2
window, simplifying operation for new users. Experienced users can utilize advanced configurable
settings for challenging applications, in-depth research and all analyses in between.

Analysis Window
*1
The customizable analysis window can simultaneously Acquisition
controller PC
display the current sample profile, registered
samples, analytical results, errors, and instrument
status. The analysis progress can be monitored at a
glance. Windows can be configured and customized
based on the user's preference. The assistant bar EDX ICPE TOC-V AA
along the left side guides the users through every LC GC Agilent LC, GC Thermo LC, GC Combine with
step of analysis in the correct order. Multi-Data Registration License
to enable integrated management
of these instruments’ data and
user information.

Instrument Status Window
LCMS GCMS FTIR UV RF TA
The instrument status window displays information
about the instrument and accessories in a compre- PC
hensive and easy-to-understand layout.
A warning indicator is displayed if an error occurs or
if a part is due for maintenance or replacement.
A instrument B instrument
Combine with
Balance PPSQ ™ ICPMS Particle Size AG TOC-L Multi-Data Registration License
Analyzer to enable integrated management
Automatic Internal Standard Monitoring *1 The acquisition control PC controls analytical instruments. It can also be used to send analytical instructions and perform postrun
analysis, just like a client PC.
Internal standard fluctuation can be displayed as a *2 If a terminal service is used, then LabSolutions software does not need to be installed on client PCs.
graph for the entire analysis time, as either intensity *3 If an iPad is used, then XenApp from Citrix must be installed.
or intensity ratio with respect to a reference sample. Adding a LabSolutions DB/CS connection kit (optional) enables compliance with electronic record-
™
This helps quickly identify complications that occur keeping and electronic signature regulations, such as requirements specified in FDA 21 CFR Part 11.
due to sample matrix effects.
Select either a standalone (LabSolutions DB) or networked (LabSolutions CS) system that is best for
the given application. LabSolutions CS manages all analytical data in a database on a network server,
so that the data can be loaded and postrun analysis can be performed on any computer connected to
the network.
Note: An additional software license is required for loading data onto a computer not connected to
an ICPMS-2040/2050 Series system.
™
LabSolutions ICPMS TRM (Optional)
Shimadzu LC-ICP-MS systems combined with LabSolu-
tions ICPMS TRM software can be used to speciate Software Required for Connecting to LabSolutions
arsenic, mercury, and other elements. The software
controls and configures both LC and ICPMS systems Name P/N Remarks
in one simple platform.
LabSolutions DB Connection Kit for ICPMS 211-49204-92 Standalone system
LabSolutions CS Connection Kit for ICPMS 211-49241-92 Network system
Second License for LabSolutions ICPMS 211-49245-91 Required for installing LabSolutions ICPMS on a
computer other than the control computer

10 11
