Minimal Operation Required

With the extended rinsing function, operators do not need to be concerned Product
about carryover that compromises data quality.
Preset methods eliminate the need for method development in many applications.

Extended Rinsing
—Automatically Minimizes Carryover—

Remeasurement required due to
Normal Sequence Carryover carryover

Sample 1 Rinse Sample 2 Rinse Sample 3 Rinse Sample 3’
High
concentration Automatically performs additional
of target rinsing after measuring samples with a
With Extended Rinsing ON elements Executed
automatically high concentration of target elements.

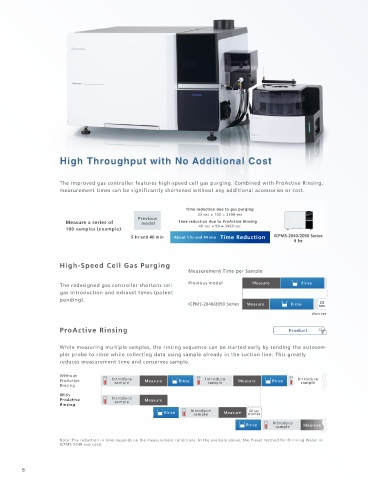

High Throughput with No Additional Cost Sample 1 Rinse Sample 2 Rinse Additional Sample 3
rinse

The improved gas controller features high-speed cell gas purging. Combined with ProActive Rinsing, Analyzing samples containing a high concentration of target elements can cause carryover to the
measurement times can be significantly shortened without any additional accessories or cost.
next sample, preventing accurate measurements. The extended rinsing function automatically
performs an additional rinse sequence when a target element exceeds a predetermined upper limit.
Time reduction due to gas purging A second rinse solution can be used in the additional rinsing sequence to improve rinsing effectiveness.
23 sec × 100 = 2300 sec Consequently, carryover is eliminated to ensure high-quality data.
Previous
Measure a series of model Time reduction due to ProActive Rinsing
100 samples (example) 40 sec × 99 = 3960 sec
5 hr and 40 min About 1 hr and 44 min Time Reduction ICPMS-2040/2050 Series
4 hr Preset Methods Applications

Preset analytical methods come configured with optimized settings, such as plasma conditions, target
High-Speed Cell Gas Purging elements, mass information, and internal standards, for common ICPMS applications. The
Measurement Time per Sample ICPMS-2040/2050 Series systems can therefore be used immediately after installation with minimal
training.
The redesigned gas controller shortens cell Previous model Measure Rinse
gas introduction and exhaust times (patent Environmental A method for analyzing drinking/tap water and a method for analyzing high matrix samples, such as waste
testing water, are included.
pending).
23
ICPMS-2040/2050 Series Measure Rinse sec
Foods A method for analyzing food samples with low TDS and a method for food samples with high TDS are included.
shorter
Methods are included, respectively for ICH Q3D analysis of oral, parenteral, inhalation and cutaneous drugs.
Pharmaceuticals
ProActive Rinsing Product
While measuring multiple samples, the rinsing sequence can be started early by sending the autosam-
pler probe to rinse while collecting data using sample already in the suction line. This greatly
reduces measurement time and conserves sample.

Without
ProActive Introduce Measure Rinse Introduce Measure Rinse Introduce
sample
sample
sample
Rinsing
With
ProActive Introduce Measure
sample
Rinsing
40 sec
Rinse Introduce Measure shorter
sample
Rinse Introduce Measure
sample
Note: The reduction in time depends on the measurement conditions. In the example above, the Preset method for Drinking Water in
ICPMS-2040 was used.
