Page 8 - ICPMS-2040 Series

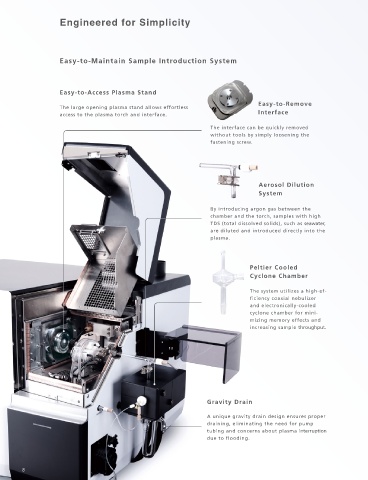

Engineered for Simplicity

Easy-to-Maintain Sample Introduction System AS-20 Autosampler

Rotary Design Reduces Tubing Length
Easy-to-Access Plasma Stand The autosampler has 60 15-mL and 8 50-mL vial
positions. The rotary design allows for shorter
Easy-to-Remove sample introduction times and can reduce
The large opening plasma stand allows effortless
access to the plasma torch and interface. Interface memory effects.

The interface can be quickly removed
without tools by simply loosening the
fastening screw.

Rotary Type XY-Table Type
(Minimizes probe tube length) (A longer tube length is
required to reach the furthest vial)
Aerosol Dilution
System
Dual Rinse Port with Overflow Function

By introducing argon gas between the The overflow-type rinse system includes both a standard and
chamber and the torch, samples with high auxiliary port to reduce contamination between samples. An
TDS (total dissolved solids), such as seawater, optional rinse station* can be added for organic solvents.
are diluted and introduced directly into the * The organic solvent rinse station does not include overflow functionality.
plasma.
Rinse port

Peltier Cooled Simple and Descriptive
Cyclone Chamber Maintenance Window

The system utilizes a high-ef- The maintenance information/setting window in new
ficiency coaxial nebulizer LabSolutions ICPMS software clearly indicates opera-
™
and electronically-cooled tion times of key components and automatically alerts
cyclone chamber for mini- users when it is time to maintain and/or replace parts,
mizing memory effects and taking the guesswork out of maintenance.
increasing sample throughput.

Gravity Drain

A unique gravity drain design ensures proper
A unique gravity drain design ensures proper
draining, eliminating the need for pump
draining, eliminating the need for pump
tubing and concerns about plasma interruption
tubing and concerns about plasma interruption
due to flooding.
due to flooding.
