Page 12 - ICPMS-2040 Series

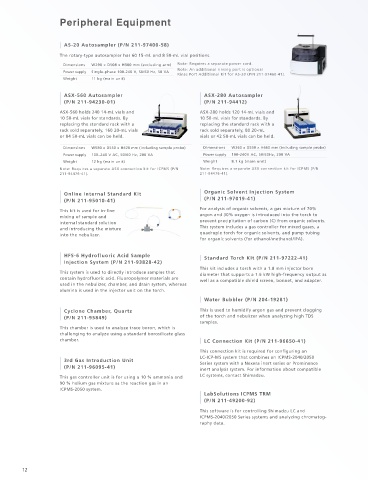

Peripheral Equipment

AS-20 Autosampler (P/N 211-97400-58)
The rotary-type autosampler has 60 15-mL and 8 50-mL vial positions. Vacuum Pump
Dimensions W290 × D508 × H300 mm (excluding arm) Note: Requires a separate power cord.
Note: An additional rinsing port is optional
Power supply Single-phase 100-240 V, 50/60 Hz, 50 VA A rotary or dry pump is required for backing the turbomolecular pump and evacuating the interface
Rinse Port Additional Kit for AS-20 (P/N 211-97460-41).
Weight 11 kg (main unit) unit. Power is supplied to the pump from the ICPMS main unit.
Rotary Pump, PFPE (P/N 211-90070-42) Dry Pump (P/N 211-96382-91)
ASX-560 Autosampler ASX-280 Autosampler
(P/N 211-94230-01) (P/N 211-94412) This pump is lubricated with a PFPE oil that allows the This oil-free dry pump has low maintenance requirements.
pump to be used for applications ranging from regular
ASX-560 holds 240 14-mL vials and ASX-280 holds 120 14-mL vials and analysis to LC-ICP-MS analysis.
10 50-mL vials for standards. By 10 50-mL vials for standards. By
replacing the standard rack with a replacing the standard rack with a Dimensions W496 × D295 × H325 mm Dimensions W494 × D217 × H301 mm
rack sold separately, 160 20-mL vials rack sold separately, 80 20-mL
or 84 50-mL vials can be held. vials or 42 50-mL vials can be held. Weight Approx. 50 kg Weight Approx. 30 kg
Dimensions W580 × D550 × H620 mm (including sample probe) Dimensions W360 × D550 × H660 mm (including sample probe)
Name P/N Remarks
Power supply 100–240 V AC, 50/60 Hz, 200 VA Power supply 100-240V AC, 50/60Hz, 200 VA
Caster 225-27850-05 Rotary pump stand with caster wheels
Weight 12 kg (main unit) Weight 8.1 kg (main unit)
Note: Requires a separate ASX connection kit for ICPMS (P/N Note: Requires a separate ASX connection kit for ICPMS (P/N Noise Absorbing Box, Large 225-27850-07 Requires a separate rotary pump noise reduction box kit (P/N
211-93825-41).
211-94476-41). 211-94476-41).
Vacuum Hose Elbow Connection 211-96090-41 Required for placing the pump under the support stand
Long Vacuum Hose, 4 m 211-97232-42 For extending the rotary pump exhaust hose
Online Internal Standard Kit Organic Solvent Injection System RP Power Cable, 3 m 211-95576-41 For extending the exhaust hose
(P/N 211-95010-41) (P/N 211-97019-41)
This kit is used for in-line For analysis of organic solvents, a gas mixture of 70%
mixing of sample and argon and 30% oxygen is introduced into the torch to Cooling Water Circulator Used to cool the main unit. Select one of the following.
internal standard solution prevent precipitation of carbon (C) from organic solvents.
and introducing the mixture This system includes a gas controller for mixed gases, a
into the nebulizer. quadruple torch for organic solvents, and pump tubing
for organic solvents (for ethanol/methanol/IPA). Standard Model Non-Freon Model
Cooling Water Circulator, SMC Cooling Water Circulator,
(P/N 211-97273-41) Apiste (P/N 211-97274-41)
HFS-6 Hydrofluoric Acid Sample Standard Torch Kit (P/N 211-97222-41)
Injection System (P/N 211-93828-42)
Dimensions W377 × D500 × H615 mm Dimensions W400 × D600 × H697 mm
This kit includes a torch with a 1.8 mm injector bore
This system is used to directly introduce samples that diameter that supports a 1.6 kW high-frequency output as Power supply Single-phase 200 to 230 V, Power supply Three-phase 200 V 50/60 Hz,
contain hydrofluoric acid. Fluoropolymer materials are well as a compatible shield screen, bonnet, and adapter. 50/60 Hz, 1.2 kVA 1.2 kVA
used in the nebulizer, chamber, and drain system, whereas Weight 43 kg Weight 58 kg
alumina is used in the injector unit on the torch.
Note: Requires a separate chiller connection kit, SMC (P/N Note: Requires a separate chiller connection kit, Apiste (P/N
Water Bubbler (P/N 204-19281) 211-93827-43). 211-93827-42).
Cyclone Chamber, Quartz This is used to humidify argon gas and prevent clogging
(P/N 211-95849) of the torch and nebulizer when analyzing high TDS
samples. Gas-Related Equipment
This chamber is used to analyze trace boron, which is
challenging to analyze using a standard borosilicate glass
chamber. LC Connection Kit (P/N 211-96650-41) Name P/N Remarks
Argon gas pressure regulator and connecting components
This connection kit is required for configuring an Gas Piping Connection Kit 211-97464-41 for installation directly in front of the ICPMS main unit
LC-ICP-MS system that combines an ICPMS-2040/2050 Gas cylinder pressure regulator for argon gas or oxygen-argon
3rd Gas Introduction Unit Series system with a Nexera inert series or Prominence Regulator, LAB1-1414V 040-72030-01 mixture gas
(P/N 211-96095-41) inert analysis system. For information about compatible Regulator, S2-1VR-1G8G-B6N1 040-72028-01 Gas cylinder pressure regulator for helium gas
This gas controller unit is for using a 10 % ammonia and LC systems, contact Shimadzu. Pressure Regulator for H2 221-35999-02 Gas cylinder pressure regulator for hydrogen gas
90 % helium gas mixture as the reaction gas in an Regulator, S2-1ER-1G8G-B1N1 040-72028-31 Gas cylinder pressure regulator for third-gas
ICPMS-2050 system.
LabSolutions ICPMS TRM Half Union, F900-G-6.35B 035-56521-04 For connecting polypropylene tubing for argon gas or
(P/N 211-49200-92) oxygen-argon mixture gas
Half Union, C1N1/4XPT1/4 035-65503 Joint for argon gas or oxygen-argon mixture gas tubing
This software is for controlling Shimadzu LC and Carrier Gas Piping with Fittings, 2.5 m 201-48067 Stainless steel tubing for helium gas lines
ICPMS-2040/2050 Series systems and analyzing chromatog- Gas Inlet Tubing with Fittings, 2.5 m 221-73474-25 Stainless steel tubing for hydrogen gas lines
raphy data.
Carrier Gas Tubing, 2 m 211-94942 Stainless steel tubing for third-gas lines
PP Tube, 44-PP White 016-43505 Polypropylene tubing for oxygen-argon mixture gas lines
Note: A hydrogen gas generator can also be used. Contact Shimadzu for further details.

12 13
