Page 14 - ICPMS-2040 Series
P. 14

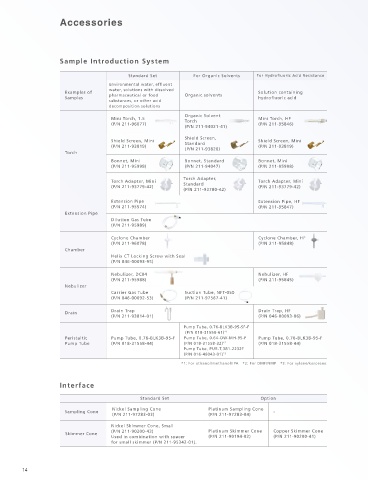

Accessories Installation
Sample Introduction System Installation Information
Standard Set For Organic Solvents For Hydrofluoric Acid Resistance Temperature within 18 to 28 °C (max. 2 °C/hour change)
Environmental water, effluent 1. Installation
Examples of water, solutions with dissolved Solution containing Site Environment Humidity within 20 to 70 %RH (with no condensation)
Samples pharmaceutical or food Organic solvents hydrofluoric acid
substances, or other acid Avoid using the system in locations with significant vibration or dust.
decomposition solutions
Organic Solvent Main unit Single-phase 200 to 240 V ± 10 %, 50/60 Hz,6 kVA
Mini Torch, 1.5 Mini Torch, HF
(P/N 211-96077) Torch (P/N 211-95846) Data processing Single-phase 100 V ± 10 %, 50/60 Hz, 110 VA
(P/N 211-94021-41) 2. Power Supply
Cooling water Single-phase 200 to 230 V, 50/60 Hz, 1.2 kVA (standard type)
Shield Screen, circulator
Shield Screen, Mini Shield Screen, Mini Three-phase 200 V, 50/60 Hz, 1.2 kVA (non-CFC type)
(P/N 211-93819) Standard (P/N 211-93819)
(P/N 211-93820)
Torch
3. Grounding Should be grounded with a maximum resistance of 100 .
Bonnet, Mini Bonnet, Standard Bonnet, Mini
(P/N 211-95998) (P/N 211-94047) (P/N 211-95998)
Type Argon gas Min. 99.95 % purity Pressure: 500 ± 10 kPa
Torch Adapter, Helium gas Min. 99.999 % purity Pressure: 200 ± 20 kPa
Torch Adapter, Mini Torch Adapter, Mini
(P/N 211-93779-42) Standard (P/N 211-93779-42) Hydrogen gas *1 Min. 99.999 % purity Pressure: 200 ± 20 kPa
(P/N 211-93780-42)
4. Gas Supply Third gas (gas mixture of 10 % ammonia and 90 % helium)
*2
Extension Pipe Extension Pipe, HF Min. 99.999 % purity Pressure: 200 ± 20 kPa
(P/N 211-95574) (P/N 211-95847) Oxygen-argon mixture gas (70 % argon and 30 % oxygen)
*3
Extension Pipe Pressure: 450 ± 10 kPa
Dilution Gas Tube
(P/N 211-95989)
5. Cooling Water Use a dedicated cooling water circulator.
Cyclone Chamber Cyclone Chamber, HF 3
(P/N 211-96078) (P/N 211-95848) 6. Exhaust Duct Exhaust flowrate of 2.4 to 3.3 m /min at exhaust outlet (install a damper).
Chamber
Helix CT Locking Screw with Seal 7. Dimensions W853 × D660 × H554 mm
(excluding the plasma stand exhaust duct and other protrusions)
(P/N 046-00093-95)
8. Weight 144 kg
Nebulizer, DC04 Nebulizer, HF
(P/N 211-95988) (P/N 211-95845) Note: Refer to the pre-installation requirements for more details.
Nebulizer *1: ICPMS-2050 Series systems only
Carrier Gas Tube Suction Tube, NFT-050 *2: When ICPMS-2050 Series systems are equipped with an optional third-gas system
(P/N 046-00092-53) (P/N 211-97567-41) *3: When an optional organic solvent injection system is installed
For more detailed system specifications, refer to the specifications sheet.
Drain Drain Trap Drain Trap, HF
(P/N 211-93814-01) (P/N 046-00093-06)
Pump Tube, 0.76-BLK3B-95-SF-F Example of External Dimensions and
(P/N 018-31558-61) *1
Peristaltic Pump Tube, 0.76-BLK3B-95-F Pump Tube, 0.64-OW-MH-95-F Pump Tube, 0.76-BLK3B-95-F Installation Configuration
Pump Tube (P/N 018-31558-44) (P/N 018-31558-32) *2 (P/N 018-31558-44)
Pump Tube, PUR-T,381-2232F
(P/N 016-46043-01) *3
Helium gas cylinder unit: mm
*1: For ethanol/methanol/IPA *2: For DMF/NMP *3: For xylene/kerosene 497 Hydrogen gas cylinder
Interface Min. 500 296 554
300
Standard Set Option
Nickel Sampling Cone Platinum Sampling Cone 660
Sampling Cone -
(P/N 211-97283-03) (P/N 211-97283-04)
615
Nickel Skimmer Cone, Small 295
(P/N 211-90200-43) Platinum Skimmer Cone Copper Skimmer Cone
Skimmer Cone
Used in combination with spacer (P/N 211-90194-02) (P/N 211-90200-41) 377 853 320 600
for small skimmer (P/N 211-95342-01).
1400
14 15
