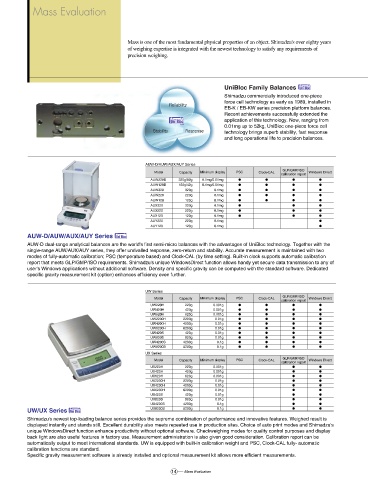

Page 14 - Hydrocarbon Evaluation Rubber and Plastic

Mass Evaluation

Mass is one of the most fundamental physical properties of an object. Shimadzu's over eighty years
of weighing expertise is integrated with the newest technology to satisfy any requirements of
precision weighing.

UniBloc Family Balances
Shimadzu commercially introduced one-piece
force cell technology as early as 1989, installed in
3FMJBCJMJUZ
EB-K / EB-KW series precision platform balances.
Recent achievements successfully extended the
application of this technology. Now, ranging from
0.01mg up to 52kg, UniBloc one-piece force cell
4UBCJMJUZ 3FTQPOTF technology brings superb stability, fast response
and long operational life to precision balances.

AUW-D/AUW/AUX/AUY Series
GLP/GMP/ISO
Model Capacity Minimum display PSC Clock-CAL Windows Direct
calibration report
AUW220D 220g/82g 0.1mg/0.01mg ● ● ● ●
AUW120D 120g/42g 0.1mg/0.01mg ● ● ● ●
AUW320 320g 0.1mg ● ● ● ●
AUW220 220g 0.1mg ● ● ● ●
AUW120 120g 0.1mg ● ● ● ●
AUX320 320g 0.1mg ● ● ●
AUX220 220g 0.1mg ● ● ●
AUX120 120g 0.1mg ● ● ●
AUY220 220g 0.1mg ●
AUY120 120g 0.1mg ●
AUW-D/AUW/AUX/AUY Series
AUW-D dual-range analytical balances are the world's first semi-micro balances with the advantages of UniBloc technology. Together with the
single-range AUW/AUX/AUY series, they offer unrivalled response, zero-return and stability. Accurate measurement is maintained with two
modes of fully-automatic calibration; PSC (temperature based) and Clock-CAL (by time setting). Built-in clock supports automatic calibration
report that meets GLP/GMP/ISO requirements. Shimadzu's unique WindowsDirect function allows handy yet secure data transmission to any of
user's Windows applications without additional software. Density and specific gravity can be computed with the standard software. Dedicated
specific gravity measurement kit (option) enhances efficiency even further.

UW Series
GLP/GMP/ISO
Model Capacity Minimum display PSC Clock-CAL Windows Direct
calibration report
UW220H 220g 0.001g ● ● ● ●
UW420H 420g 0.001g ● ● ● ●
UW620H 620g 0.001g ● ● ● ●
UW2200H 2200g 0.01g ● ● ● ●
UW4200H 4200g 0.01g ● ● ● ●
UW6200H 6200g 0.01g ● ● ● ●
UW420S 420g 0.01g ● ● ● ●
UW820S 820g 0.01g ● ● ● ●
UW4200S 4200g 0.1g ● ● ● ●
UW8200S 8200g 0.1g ● ● ● ●
UX Series
GLP/GMP/ISO
Model Capacity Minimum display PSC Clock-CAL Windows Direct
calibration report
UX220H 220g 0.001g ● ●
UX420H 420g 0.001g ● ●
UX620H 620g 0.001g ● ●
UX2200H 2200g 0.01g ● ●
UX4200H 4200g 0.01g ● ●
UX6200H 6200g 0.01g ● ●
UX420S 420g 0.01g ● ●
UX820S 820g 0.01g ● ●
UX4200S 4200g 0.1g ● ●
UW/UX Series UX8200S 8200g 0.1g ● ●
Shimadzu's newest top-loading balance series provides the supreme combination of performance and innovative features. Weighed result is
displayed instantly and stands still. Excellent durability also meets repeated use in production sites. Choice of auto print modes and Shimadzu's
unique WindowsDirect function enhance productivity without optional software. Checkweighing modes for quality control purposes and display
back light are also useful features in factory use. Measurement administration is also given good consideration. Calibration report can be
automatically output to meet international standards. UW is equipped with built-in calibration weight and PSC, Clock-CAL fully- automatic
calibration functions are standard.
Specific gravity measurement software is already installed and optional measurement kit allows more efficient measurements.

14 Mass Evaluation
