Page 17 - Hydrocarbon Evaluation Rubber and Plastic

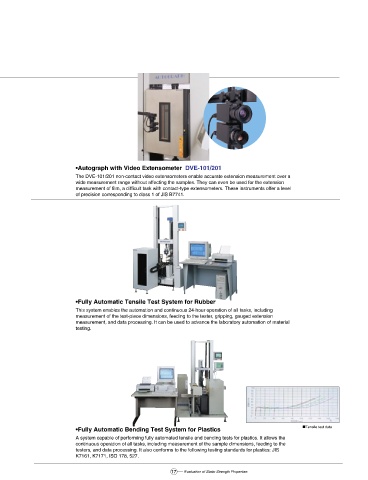

•Autograph with Video Extensometer DVE-101/201
The DVE-101/201 non-contact video extensometers enable accurate extension measurement over a
wide measurement range without affecting the samples. They can even be used for the extension
measurement of film, a difficult task with contact-type extensometers. These instruments offer a level
of precision corresponding to class 1 of JIS B7741.

•Fully Automatic Tensile Test System for Rubber
This system enables the automation and continuous 24-hour operation of all tasks, including
measurement of the test-piece dimensions, feeding to the tester, gripping, gauged extension
measurement, and data processing. It can be used to advance the laboratory automation of material
testing.

■Tensile test data
•Fully Automatic Bending Test System for Plastics
A system capable of performing fully automated tensile and bending tests for plastics. It allows the
continuous operation of all tasks, including measurement of the sample dimensions, feeding to the
testers, and data processing. It also conforms to the following testing standards for plastics: JIS
K7161, K7171, ISO 178, 527.

17 Evaluation of Static Strength Properties
