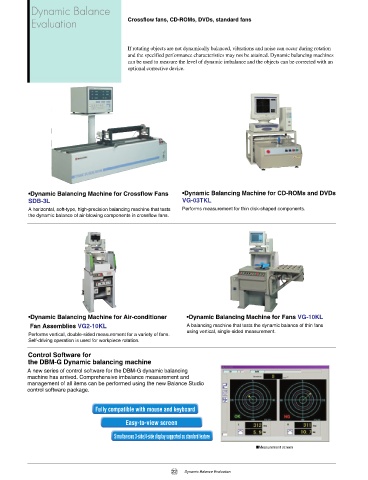

Dynamic Balance

Evaluation Crossflow fans, CD-ROMs, DVDs, standard fans

If rotating objects are not dynamically balanced, vibrations and noise can occur during rotation
and the specified performance characteristics may not be attained. Dynamic balancing machines
can be used to measure the level of dynamic imbalance and the objects can be corrected with an
optional corrective device.

•Dynamic Balancing Machine for Crossflow Fans •Dynamic Balancing Machine for CD-ROMs and DVDs
SDB-3L VG-03TKL
A horizontal, soft-type, high-precision balancing machine that tests Performs measurement for thin disk-shaped components.
the dynamic balance of air-blowing components in crossflow fans.

•Dynamic Balancing Machine for Air-conditioner •Dynamic Balancing Machine for Fans VG-10KL
Fan Assemblies VG2-10KL A balancing machine that tests the dynamic balance of thin fans
using vertical, single-sided measurement.
Performs vertical, double-sided measurement for a variety of fans.
Self-driving operation is used for workpiece rotation.

Control Software for
the DBM-G Dynamic balancing machine
A new series of control software for the DBM-G dynamic balancing
machine has arrived. Comprehensive imbalance measurement and
management of all items can be performed using the new Balance Studio
control software package.

Fully compatible with mouse and keyboard

Easy-to-view screen

Simultaneous 3-side/4-side display supported as standard feature
■Measurement screen

22 Dynamic Balance Evaluation
