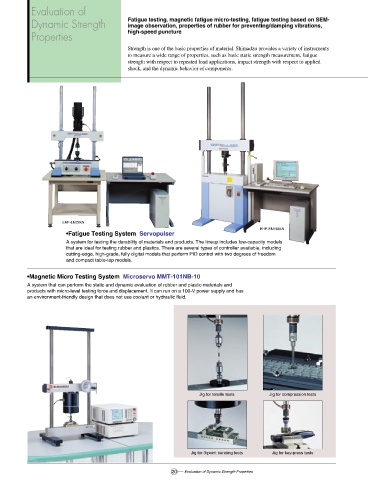

Page 20 - Hydrocarbon Evaluation Rubber and Plastic

Evaluation of

Dynamic Strength Fatigue testing, magnetic fatigue micro-testing, fatigue testing based on SEM-
image observation, properties of rubber for preventing/damping vibrations,
Properties high-speed puncture

Strength is one of the basic properties of material. Shimadzu provides a variety of instruments
to measure a wide range of properties, such as basic static strength measurement, fatigue
strength with respect to repeated load applications, impact strength with respect to applied
shock, and the dynamic behavior of components.

EHF-LM20kN

EHF-EM100kN
•Fatigue Testing System Servopulser
A system for testing the durability of materials and products. The lineup includes low-capacity models
that are ideal for testing rubber and plastics. There are several types of controller available, including
cutting-edge, high-grade, fully digital models that perform PID control with two degrees of freedom
and compact table-top models.

•Magnetic Micro Testing System Microservo MMT-101NB-10
A system that can perform the static and dynamic evaluation of rubber and plastic materials and
products with micro-level testing force and displacement. It can run on a 100-V power supply and has
an environment-friendly design that does not use coolant or hydraulic fluid.

Jig for tensile tests Jig for compression tests

Jig for 3-point bending tests Jig for key-press tests

20 Evaluation of Dynamic Strength Properties
