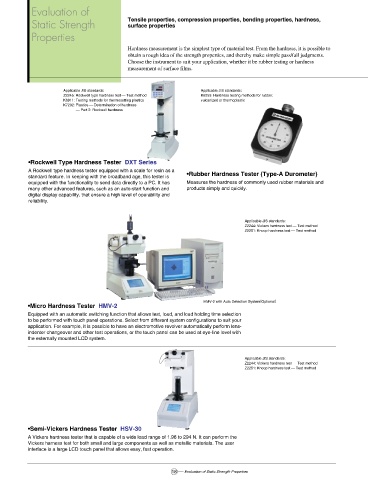

Page 18 - Hydrocarbon Evaluation Rubber and Plastic

Evaluation of

Static Strength Tensile properties, compression properties, bending properties, hardness,
surface properties
Properties

Hardness measurement is the simplest type of material test. From the hardness, it is possible to
obtain a rough idea of the strength properties, and thereby make simple pass/fail judgments.
Choose the instrument to suit your application, whether it be rubber testing or hardness
measurement of surface films.

Applicable JIS standards: Applicable JIS standards:
Z2245: Rockwell type hardness test ⎯ Test method K6253: Hardness testing methods for rubber,
K6911: Testing methods for thermosetting plastics vulcanized or thermoplastic
K7202: Plastics ⎯ Determination of hardness
⎯ Part 2: Rockwell hardness

•Rockwell Type Hardness Tester DXT Series
A Rockwell type hardness tester equipped with a scale for resin as a
•Rubber Hardness Tester (Type-A Durometer)
standard feature. In keeping with the broadband age, this tester is
equipped with the functionality to send data directly to a PC. It has Measures the hardness of commonly used rubber materials and
many other advanced features, such as an auto-start function and products simply and quickly.
digital display capability, that ensure a high level of operability and
reliability.

Applicable JIS standards:
Z2244: Vickers hardness test ⎯ Test method
Z2251: Knoop hardness test ⎯ Test method

HMV-2 with Auto Detection System ( Optional )
•Micro Hardness Tester HMV-2
Equipped with an automatic switching function that allows test, load, and load holding time selection
to be performed with touch panel operations. Select from different system configurations to suit your
application. For example, it is possible to have an electromotive revolver automatically perform lens-
indenter changeover and other test operations, or the touch panel can be used at eye-line level with
the externally mounted LCD system.

Applicable JIS standards:
Z2244: Vickers hardness test ⎯ Test method
Z2251: Knoop hardness test ⎯ Test method

•Semi-Vickers Hardness Tester HSV-30
A Vickers hardness tester that is capable of a wide load range of 1.96 to 294 N. It can perform the
Vickers harness test for both small and large components as well as metallic materials. The user
interface is a large LCD touch panel that allows easy, fast operation.

18 Evaluation of Static Strength Properties
