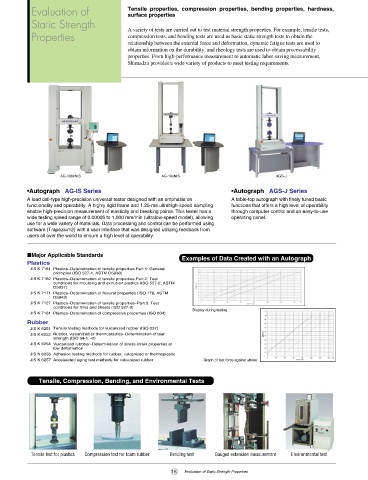

Page 16 - Hydrocarbon Evaluation Rubber and Plastic

Evaluation of Tensile properties, compression properties, bending properties, hardness,
surface properties
Static Strength
A variety of tests are carried out to test material strength properties. For example, tensile tests,
Properties compression tests, and bending tests are used as basic static strength tests to obtain the
relationship between the external force and deformation, dynamic fatigue tests are used to
obtain information on the durability, and rheology tests are used to obtain processability
properties. From high-performance measurement to automatic labor-saving measurement,
Shimadzu provides a wide variety of products to meet testing requirements.

AG-100kNIS AG-10kNIS AGS-J

•Autograph AG-IS Series •Autograph AGS-J Series
A load cell-type high-precision universal tester designed with an emphasis on A table-top autograph with finely tuned basic
functionality and operability. A highly rigid frame and 1.25-ms ultrahigh-speed sampling functions that offers a high level of operability
enable high-precision measurement of elasticity and breaking points. This tester has a through computer control and an easy-to-use
wide testing speed range of 0.00005 to 1,000 mm/min (ultralow-speed model), allowing operating panel.
use for a wide variety of materials. Data processing and control can be performed using
software (Trapezium2) with a user interface that was designed utilizing feedback from
users all over the world to ensure a high level of operability.

■Major Applicable Standards
Examples of Data Created with an Autograph
Plastics
JIS K 7161 Plastics−Determination of tensile properties Part 1: General
principles (ISO 527-1, ASTM D5938)
JIS K 7162 Plastics−Determination of tensile properties Part 2: Test
conditions for moulding and extrusion plastics (ISO 527-2, ASTM
D5937)
JIS K 7171 Plastics−Determination of flexural properties (ISO 178, ASTM
D5943)
JIS K 7127 Plastics−Determination of tensile properties−Part 3: Test
conditions for films and sheets (ISO 527-3)
Display during testing
JIS K 7181 Plastics−Determination of compressive properties (ISO 604)
Rubber
JIS K 6251 Tensile testing methods for vulcanized rubber (ISO 037)
JIS K 6252 Rubber, vulcanized or thermoplastics−Determination of tear
strength (ISO 34-1, -2)
JIS K 6254 Vulcanized rubbber−Determination of stress-strain properties at
low deformation
JIS K 6256 Adhesion testing methods for rubber, vulcanized or thermoplastic
JIS K 6257 Accelerated aging test methods for vulcanized rubber Graph of test force against stroke

Tensile, Compression, Bending, and Environmental Tests

Tensile test for plastics Compression test for foam rubber Bending test Gauged extension measurement Environmental test

16 Evaluation of Static Strength Properties
