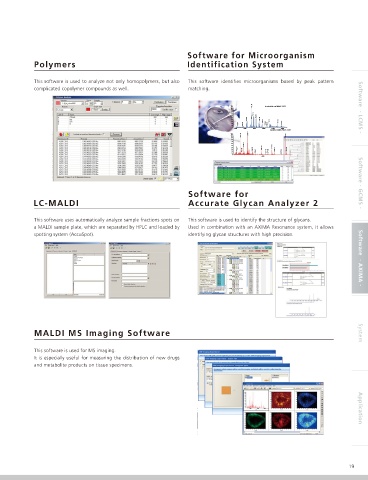

Page 19 - Shimadzu-MassSpectrometerCatalog

Software for Microorganism
Polymers Identification System

This software is used to analyze not only homopolymers, but also This software identifies microorganisms based by peak pattern
complicated copolymer compounds as well. matching.

%Int. 7271.93 Escherichia coli NBRC 3972
100 Software - LCMS -
90
80
70 7707.16
60 8325.38
50 7333.07 9064.89
40 6255.85
30 9738.82 11183.73 13001.25
20 4365.97 5382.30 10298.41 13803.27
10 10692.83
0
4000 6000 8000 10000 12000 14000
Bacillus subtilis NBRC 3134
%Int. 6601.17
100 5257.39 13670.54
90
80
70
60
50 5819.04
40 9210.48 11144.40
30 4522.16 7429.52 11636.03 13878.63
20 5464.66 7994.51 10007.47 10379.52 12907.95
10
0
m/z
Software for Software - GCMS -
LC-MALDI Accurate Glycan Analyzer 2
This software uses automatically analyze sample fractions spots on This software is used to identify the structure of glycans.
a MALDI sample plate, which are separated by HPLC and loaded by Used in combination with an AXIMA Resonance system, it allows
spotting system (AccuSpot). identifying glycan structures with high precision. Software - AXIMA -

MALDI MS Imaging Software System

This software is used for MS imaging.
It is especially useful for measuring the distribution of new drugs
and metabolite products on tissue specimens. Application
