Biopharmaceutical

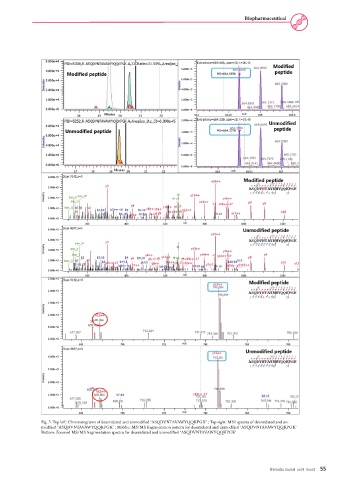

                Fig. 5. Top left: Chromatograms of deamidated and unmodified ‘ASQDVNTAVAWYQQKPGK’ ; Top right: MS1 spectra of deamidated and un-
                modified ‘ASQDVNTAVAWYQQKPGK’ ; Middle: MS/MS fragmentation pattern for deamidated and unmodified ‘ASQDVNTAVAWYQQKPGK’
                Bottom: Zoomed MS/MS fragmentation spectra for deamidated and unmodified ‘ASQDVNTAVAWYQQKPGK’
