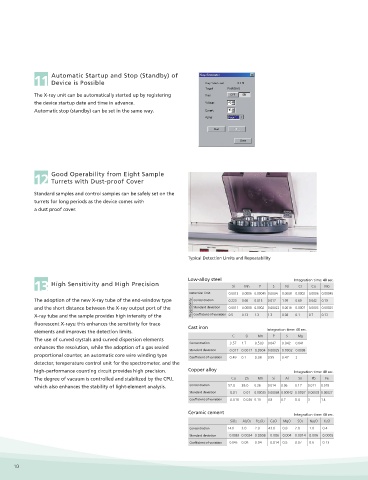

Page 10 - Shimadzu MXF-2400

11 Automatic Startup and Stop (Standby) of 14 Rapid and Precise Sample Setting
Device is Possible

The X-ray unit can be automatically started up by registering The swing arm system sets a sample precisely within 5 seconds,
the device startup date and time in advance. in a single motion. This simple design minimizes down time and
Automatic stop (standby) can be set in the same way. ensures stable performance even in high-duty operation.

X-ray ON
40 kV
95 mA
Scanner 1
120.32 deg.
Scanner 2
90.23 deg.
Sample chamber
Good Operability from Eight Sample
12 Turrets with Dust-proof Cover pressure Turret
35 Pa
Device temperature
35˚C
Standard samples and control samples can be safely set on the
Cooling water conductivity
turrets for long periods as the device comes with 0.23 uS
a dust proof cover.

15 Automatic Qualitative Determination

The scanning monochromator permits automatic qualitative
Typical Detection Limits and Repeatability
analysis.
The 2θ-PHA linkage system (detector high voltage linkage
13 High Sensitivity and High Precision Low-alloy steel Si Mn P S Ni Integration time: 40 sec. system) excludes the influence of higher-order lines to provide
easy-to-read profiles.
Cu
Cr
Mo
Detection limit 0.0013 0.0006 0.00045 0.0004 0.0008 0.0002 0.0006 0.00045 In qualitative analysis, 8 samples many be continuously
The adoption of the new X-ray tube of the end-window type Concentration 0.223 0.66 0.015 0.017 1.99 0.69 0.042 0.19 analyzed, and then the peaks are identified and the results are
and the short distance between the X-ray output port of the Repeatability Standard deviation 0.0011 0.0008 0.0002 0.00022 0.0016 0.0007 0.0003 0.00025 displayed and printed out.
X-ray tube and the sample provides high intensity of the Coefficient of variation 0.5 0.13 1.3 1.3 0.08 0.1 0.7 0.13
fluorescent X-rays; this enhances the sensitivity for trace
Cast iron Integration time: 40 sec.
elements and improves the detection limits.
C Si Mn P S Mg
The use of curved crystals and curved dispersion elements
Concentration 3.57 1.7 0.503 0.047 0.042 0.041
enhances the resolution, while the adoption of a gas sealed
Standard deviation 0.017 0.0017 0.0004 0.00025 0.0002 0.0008
proportional counter, an automatic core wire winding type Coefficient of variation 0.49 0.1 0.08 0.55 0.47 2
detector, temperature control unit for the spectrometer, and the
high-performance counting circuit provides high precision. Copper alloy Integration time: 40 sec.
The degree of vacuum is controlled and stabilized by the CPU, Cu Zn Mn Si Al Sn Pb Fe
which also enhances the stability of light-element analysis. Concentration 57.0 38.0 0.26 0.014 0.06 0.17 0.011 0.019
Standard deviation 0.01 0.01 0.00035 0.00068 0.00042 0.0007 0.00033 0.00027
Coefficient of variation 0.018 0.026 0.13 4.8 0.7 0.4 3 1.4

Ceramic cement Integration time: 40 sec.
SiO2 Al2O3 Fe2O3 CaO MgO SO3 Na2O K2O
Concentration 14.0 3.0 2.0 43.0 0.8 2.0 1.0 0.4
Standard deviation 0.0063 0.0024 0.0008 0.006 0.004 0.0014 0.006 0.0005
Coefficient of variation 0.045 0.08 0.04 0.014 0.5 0.07 0.6 0.13

MXF-2400
10 Multi-Channel X-ray Fluorescence Spectrometer 11
